Description

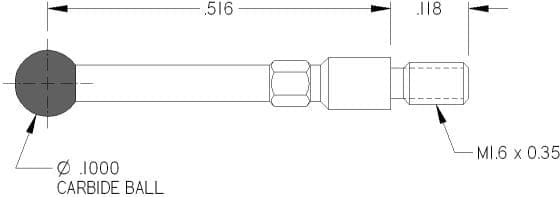

M1.6 Thds, Ø.100″ Carbide Ball X .516″ Long.
Part No. 143-100
Click to Enlarge
Part No. 143-100
$17.00

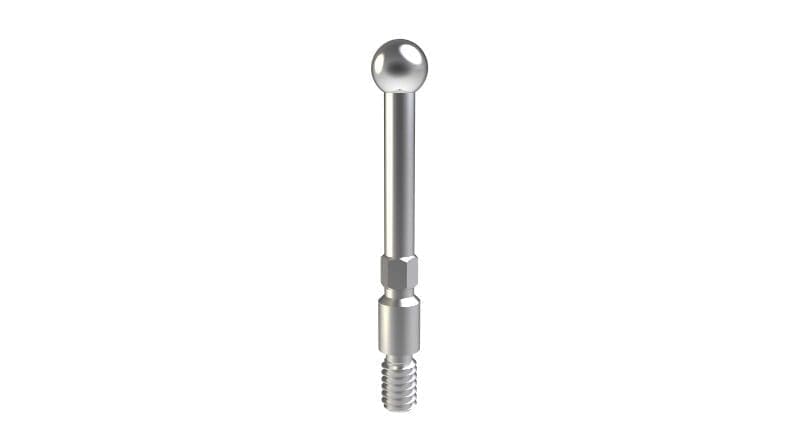

Dial Test Indicator Contact Point
M1.6 Thds, Ø.100" Carbide Ball X .516" Long.
| Qty | Percent |
|---|---|
| 10 | 5 |
| 24 | 10 |
| 50 | 15 |
| 100 | 20 |
Additional information
| Weight | 0.3 g |
|---|---|
| Length | 0.516in (13.11mm) |
| Ball Diameter | 0.1000in (2.540mm) |
| Tip / Ball Material | Carbide |
| Stem Material | Stainless Steel |
| Male Thread | M1.6X0.35 |
| Style | Straight |
| Body Material | Stainless Steel |
| OEM Manufacturer | Fowler, Mahr |
| OEM Model Number | 52-568-005, 52-568-006, 52-568-010, 52-568-011, 52-568-015, 52-568-016, 52-568-020, 800S, 800SG, 800SGI, 800SGZ, 800SM, 800SMZ, 800SZ, 800WZ, 801TH |
