Description
M1.7 Thds, Ø.006″ Carbide Ball X .598″ Long.
Part No. 157-006
Click to Enlarge
Part No. 157-006
$24.75

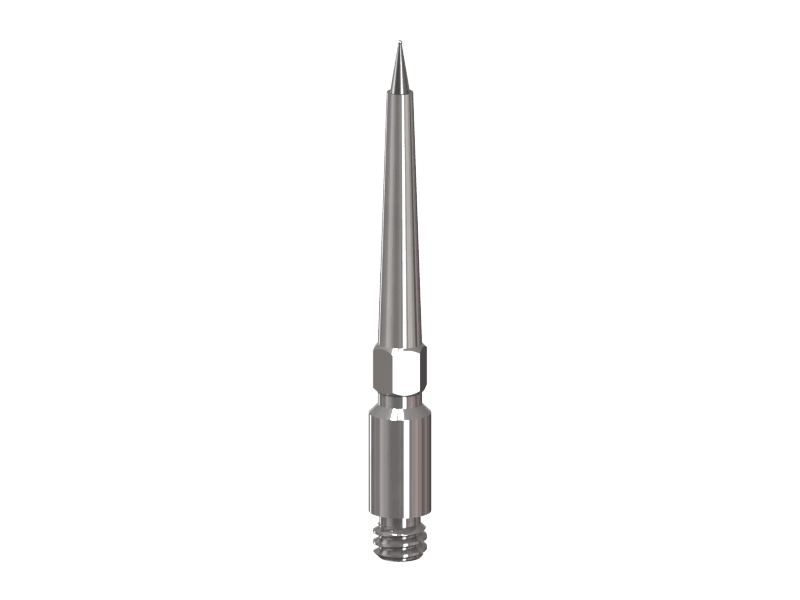

Dial Test Indicator Contact Point

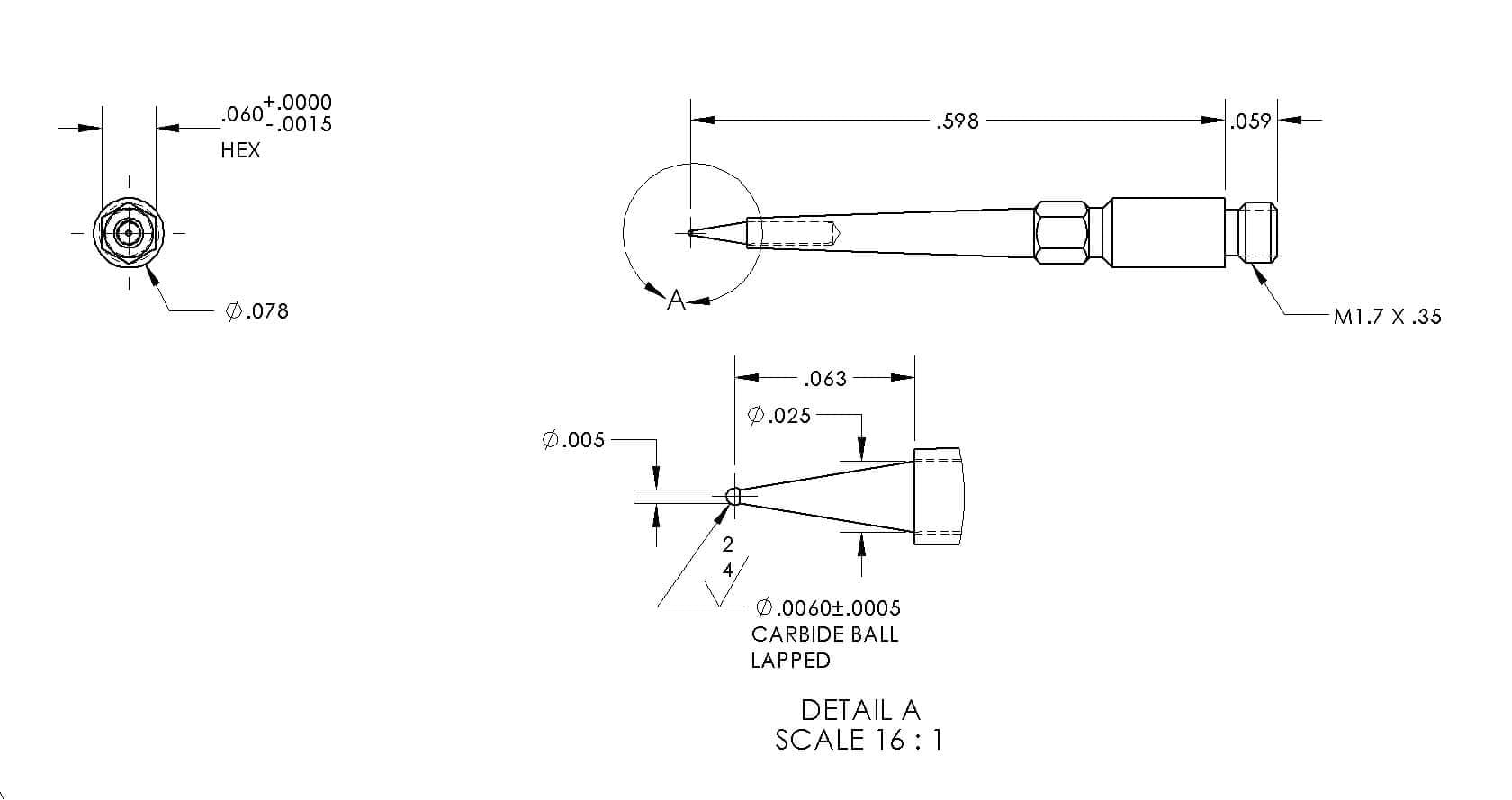

M1.7 Thds, Ø.006" Carbide Ball X .598" Long.
| Qty | Percent |
|---|---|
| 10 | 5 |
| 24 | 10 |
| 50 | 15 |
| 100 | 20 |
Additional information
| Weight | 0.2 g |
|---|---|
| Length | 0.598in (15.19mm) |
| Ball Diameter | 0.0060in (0.152mm) |
| Tip / Ball Material | Carbide |
| Stem Material | Stainless Steel |
| Male Thread | M1.7X0.35 |
| Style | Straight |
| Body Material | Stainless Steel |
| OEM Manufacturer | Mitutoyo |
| OEM Model Number | 513-104, 513-104-1, 513-128, 513-128-1, 513-405-10, 513-409-10, 513-425-10, 513-445-10, 513-455-10, 513-465-10, 513-475-10, 513-485-10, 513-504, 513-528 |
