Description

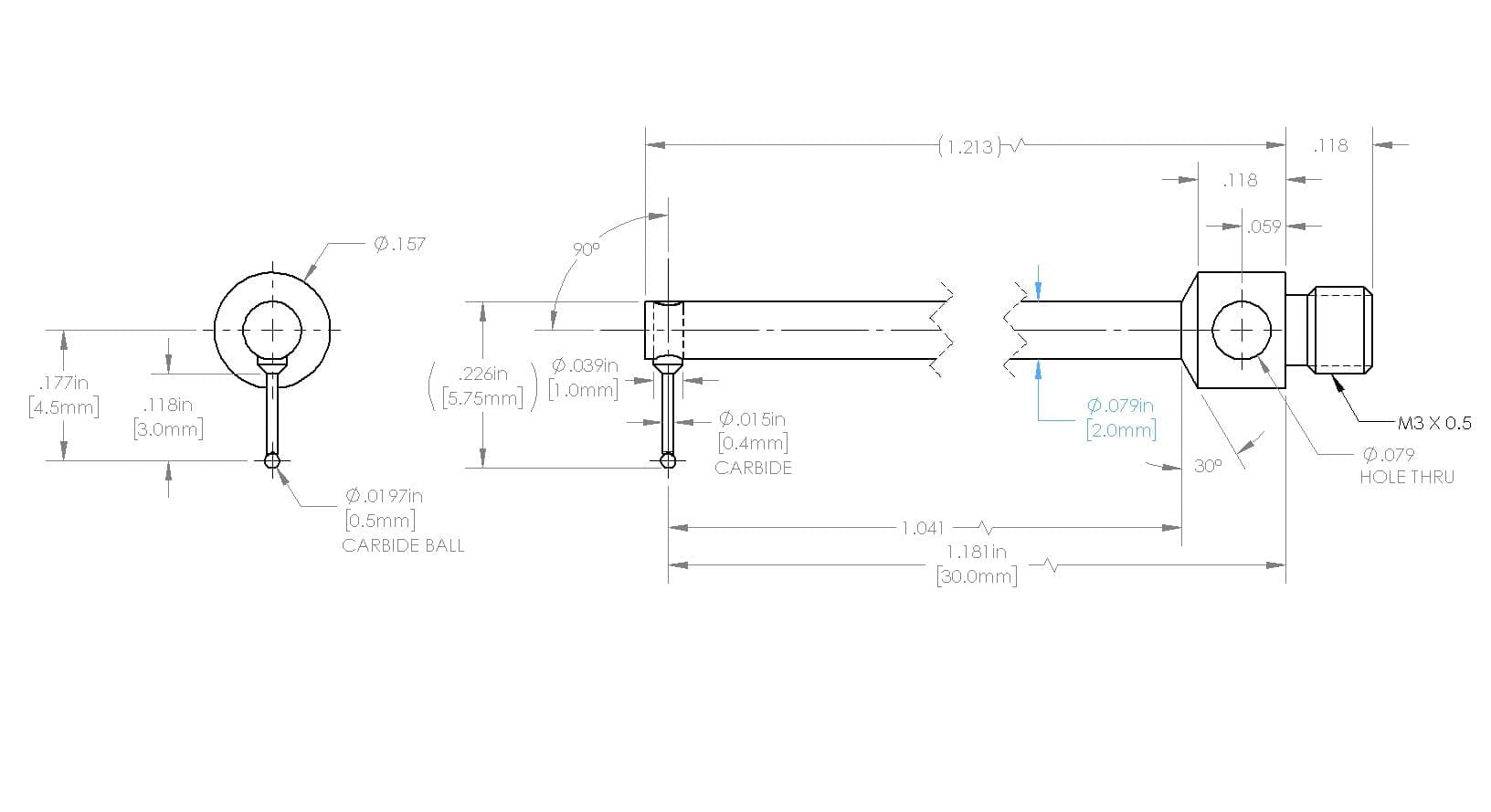

M3 Thds, 30.0mm Range Length, Ø.5mm Carbide Ball on Ø.38mm Carbide Stem X 3.0mm E.W.L. mounted at 90° Right Angle in End of Ø2.0mm Shank
$97.00
CMM Replacement Right Angle Offset Stylus
M3 Thds, 30.0mm Range Length, Ø.5mm Carbide Ball on Ø.38mm Carbide Stem X 3.0mm E.W.L. mounted at 90° Right Angle in End of Ø2.0mm Shank
Qty | Percent |
---|---|
10 | 5 |
24 | 10 |
50 | 15 |
100 | 20 |
M3 Thds, 30.0mm Range Length, Ø.5mm Carbide Ball on Ø.38mm Carbide Stem X 3.0mm E.W.L. mounted at 90° Right Angle in End of Ø2.0mm Shank
Weight | 1.1 g |
---|---|
Length | 1.181in (30.00mm) |
Ball Diameter | 0.0197in (0.500mm) |
Tip / Ball Material | Carbide |
EWL | 0.118in (3.00mm) |
Stem Material | Carbide |
Male Thread | M3X0.5 |
Body Material | Stainless Steel |
Stem Diameter | 0.015in (0.38mm) |
