Description

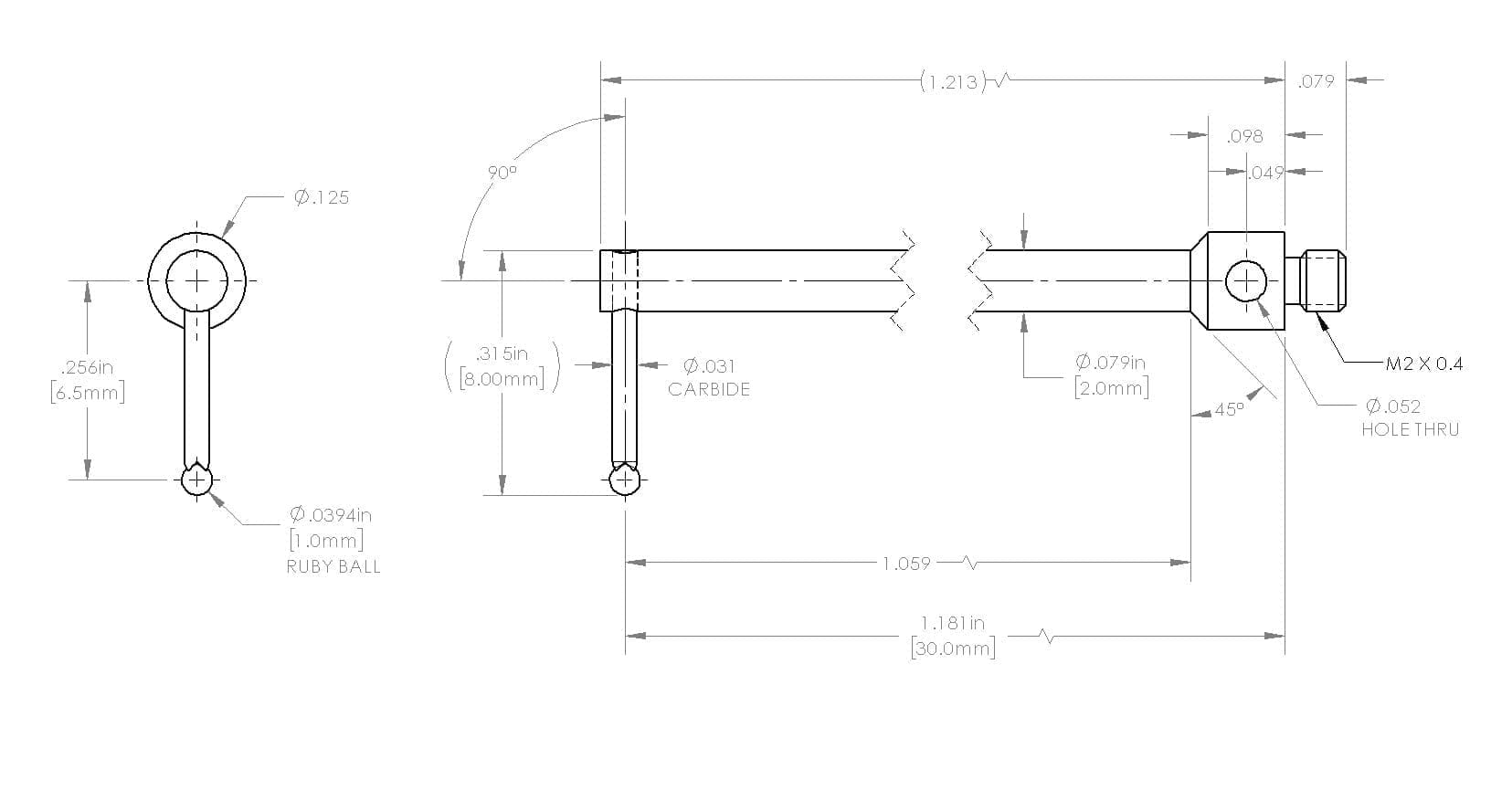

M2 Thds, 30.0mm Range Length, Ø1.0mm Ruby Ball on Ø.79mm Carbide Stem X 5.0mm E.W.L. mounted at 90° Right Angle in End of Ø2.0mm Shank
Part No. 252-1R
Click to Enlarge
Part No. 252-1R
$102.00
CMM Replacement Right Angle Offset Stylus
M2 Thds, 30.0mm Range Length, Ø1.0mm Ruby Ball on Ø.79mm Carbide Stem X 5.0mm E.W.L. mounted at 90° Right Angle in End of Ø2.0mm Shank
| Qty | Percent |
|---|---|
| 10 | 5 |
| 24 | 10 |
| 50 | 15 |
| 100 | 20 |
Additional information
| Weight | 1 g |
|---|---|
| Length | 1.181in (30.00mm) |
| Ball Diameter | 0.0394in (1.000mm) |
| Tip / Ball Material | Ruby |
| EWL | 0.197in (5.00mm) |
| Stem Material | Carbide |
| Male Thread | M2X0.4 |
| Body Material | Stainless Steel |
| Stem Diameter | 0.031in (0.79mm) |
