Description
M3 Thds, 21.0mm Range Length, Ø1.5mm Carbide Ball on Ø1.0mm Carbide Stem X 13.5mm E.W.L.
Part No. 261-1.5L
Click to Enlarge
Part No. 261-1.5L
$47.25

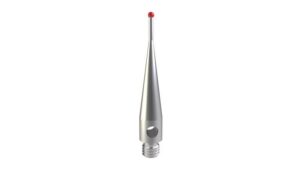

CMM Replacement Stylus
M3 Thds, 21.0mm Range Length, Ø1.5mm Carbide Ball on Ø1.0mm Carbide Stem X 13.5mm E.W.L.
| Qty | Percent |
|---|---|
| 10 | 5 |
| 24 | 10 |
| 50 | 15 |
| 100 | 20 |
Additional information
| Weight | 0.8 g |
|---|---|
| Length | 0.827in (21.00mm) |
| Ball Diameter | 0.0591in (1.500mm) |
| Tip / Ball Material | Carbide |
| EWL | 0.531in (13.50mm) |
| Stem Material | Carbide |
| Male Thread | M3X0.5 |
| Body Material | Stainless Steel |
| Stem Diameter | 0.039in (1.00mm) |
