Description
M3 Thds, 21.0mm Range Length, Ø8.0mm Carbide Ball on Ø4.0mm Steel Stem X 21.0mm E.W.L.
Part No. 261-8
Click to Enlarge
Part No. 261-8
$52.50

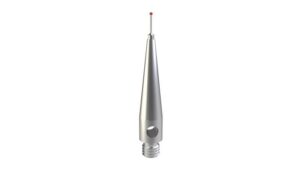

CMM Replacement Stylus
M3 Thds, 21.0mm Range Length, Ø8.0mm Carbide Ball on Ø4.0mm Steel Stem X 21.0mm E.W.L.
| Qty | Percent |
|---|---|
| 10 | 5 |
| 24 | 10 |
| 50 | 15 |
| 100 | 20 |
Additional information
| Weight | 5.7 g |
|---|---|
| Length | 0.827in (21.00mm) |
| Ball Diameter | 0.3150in (8.000mm) |
| Tip / Ball Material | Carbide |
| EWL | 0.827in (21.00mm) |
| Stem Material | Stainless Steel |
| Male Thread | M3X0.5 |
| Body Material | Stainless Steel |
| Stem Diameter | 0.157in (4.00mm) |
