Description

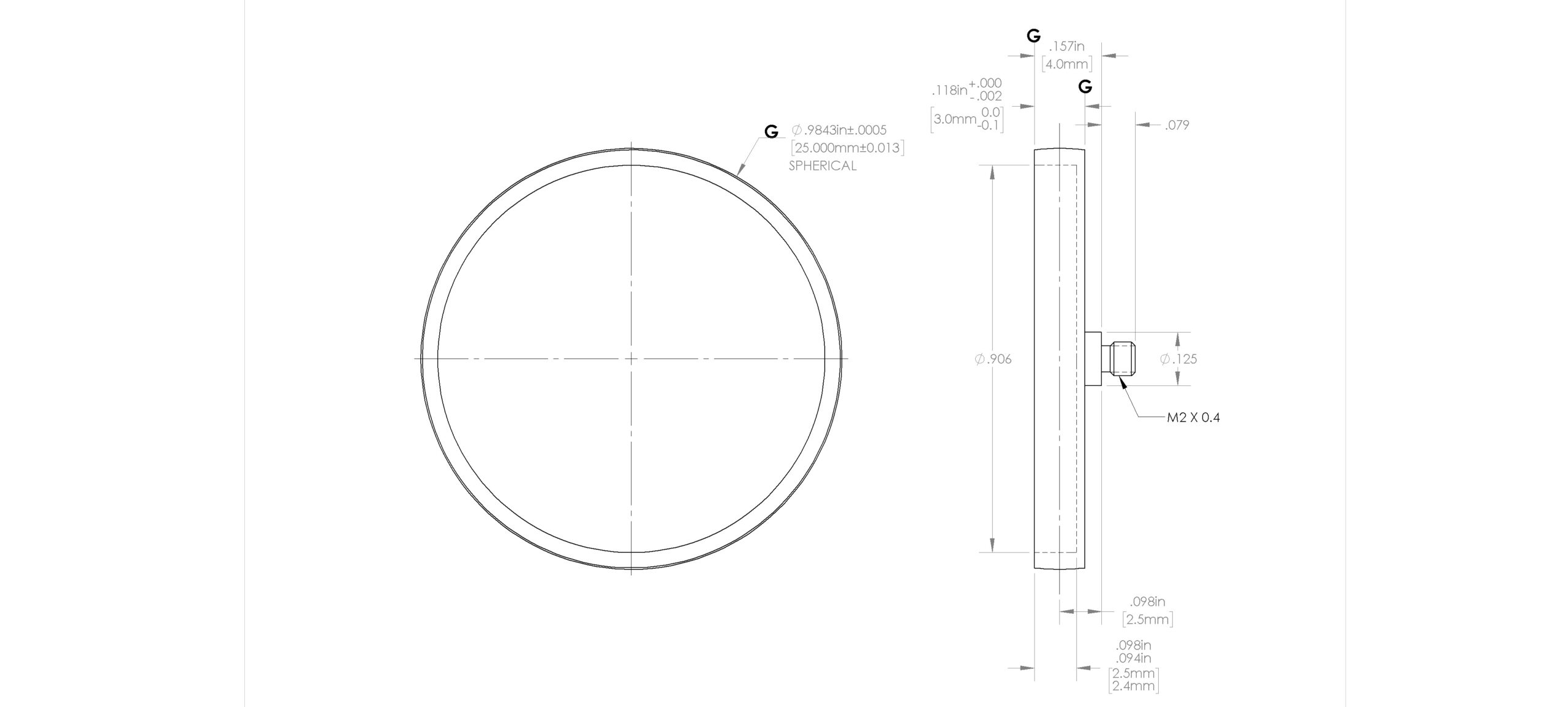

Hardened Steel Disk, M2 Thds, Ø25.0mm Spherical Dia. X 3.0mm Disk Depth, 2.5mm Range Length
Part No. 275
Click to Enlarge
Part No. 275
$91.25
CMM Replacement Disc Stylus
Hardened Steel Disk, M2 Thds, Ø25.0mm Spherical Dia. X 3.0mm Disk Depth, 2.5mm Range Length
| Qty | Percent |
|---|---|
| 10 | 5 |
| 24 | 10 |
| 50 | 15 |
| 100 | 20 |
Additional information
| Weight | 3.7 g |
|---|---|
| Length | 0.118in (3.00mm) |
| Tip / Ball Material | Hardened Steel |
| Stem Material | Tool Steel |
| Diameter | 0.984in (25.00mm) |
| Male Thread | M2X0.4 |
| Body Material | Tool Steel |
| Stem Diameter | 0.125in (3.18mm) |
| OEM Manufacturer | Mitutoyo, Renishaw |
| OEM Part Number | A-5000-4187, K651082, PS22R |
