Description

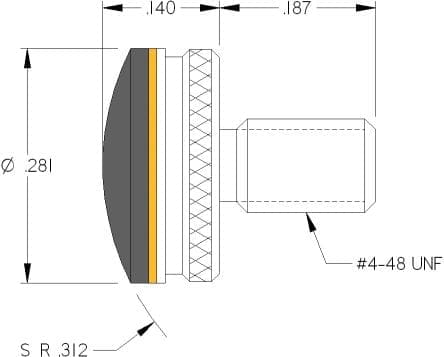

4-48 Thds, Carbide Tipped, Button Contact with .312″ Spherical Radius, Ø.281″ Dia X .140″ Long
Part No. 305
Click to Enlarge
Part No. 305
$26.00
AGD Indicator Contact Point
4-48 Thds, Carbide Tipped, Button Contact with .312" Spherical Radius, Ø.281" Dia X .140" Long
| Qty | Percent |
|---|---|
| 10 | 5 |
| 24 | 10 |
| 50 | 15 |
| 100 | 20 |
Additional information
| Weight | 1.4 g |
|---|---|
| Length | 0.140in (3.55mm) |
| Tip / Ball Material | Carbide |
| Radius | 0.312in (7.92mm) |
| Diameter | 0.281in (7.14mm) |
| Male Thread | 4-48 |
| Body Material | Tool Steel |
