Description

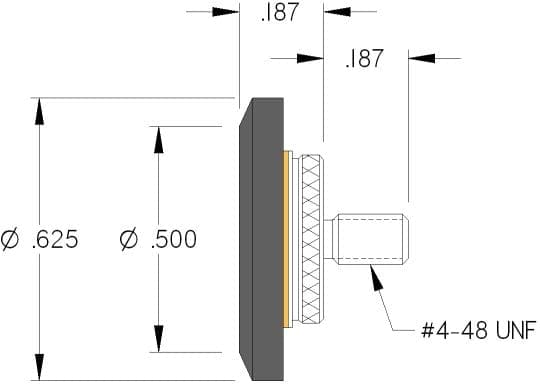

4-48 Thds, Carbide Tipped, Flat Contact with 25° Lead Chamfer, Ø.500″ Gauging Dia; Ø.625″ Body Dia X .187″ Long
Part No. 505
Click to Enlarge
Part No. 505
$91.50
AGD Indicator Contact Point
4-48 Thds, Carbide Tipped, Flat Contact with 25° Lead Chamfer, Ø.500" Gauging Dia; Ø.625" Body Dia X .187" Long
| Qty | Percent |
|---|---|
| 10 | 5 |
| 24 | 10 |
| 50 | 15 |
| 100 | 20 |
Additional information
| Weight | 8.1 g |
|---|---|
| Length | 0.187in (4.75mm) |
| Tip / Ball Material | Carbide |
| Diameter | 0.625in (15.88mm) |
| Male Thread | 4-48 |
| Body Material | Tool Steel |
