Description

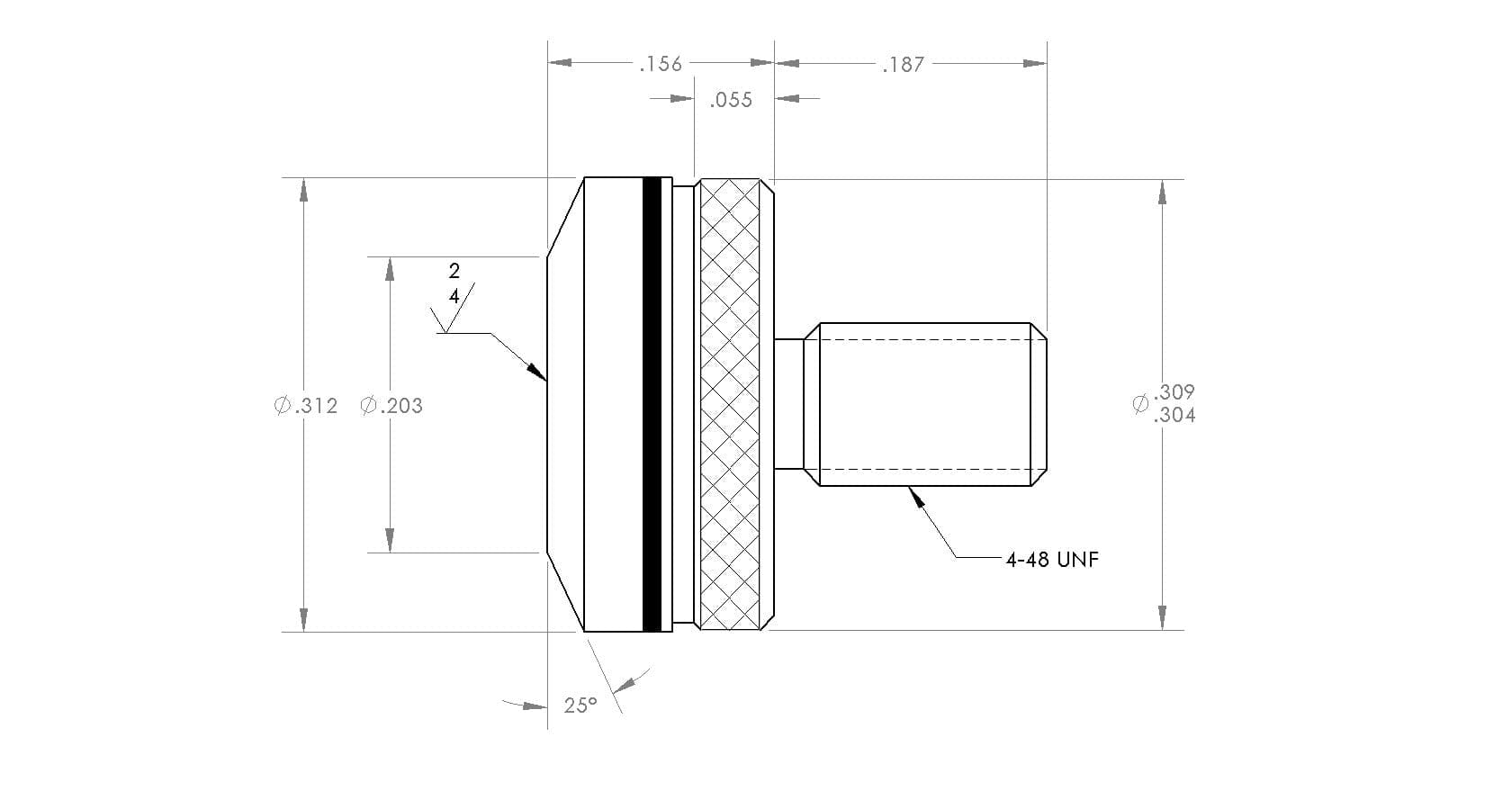

4-48 Thds, Carbide Tipped, Flat Contact with 25° Lead Chamfer, Ø.203″ Gauging Dia; Ø.312″ Body Dia X .156″ Long
Part No. 509
Click to Enlarge
Part No. 509
$26.00
AGD Indicator Contact Point
4-48 Thds, Carbide Tipped, Flat Contact with 25° Lead Chamfer, Ø.203" Gauging Dia; Ø.312" Body Dia X .156" Long
| Qty | Percent |
|---|---|
| 10 | 5 |
| 24 | 10 |
| 50 | 15 |
| 100 | 20 |
Additional information
| Weight | 1.0-5 g |
|---|---|
| Length | 0.156in (3.96mm) |
| Diameter | 0.312in (7.92mm) |
| Male Thread | 4-48 |
| Body Material | Tool Steel |
