Description
M2.5 Thds, Carbide Tipped, Flat Contact with 25° Lead Chamfer, Ø.203″ Gauging Dia; Ø.312″ Body Dia X .156″ Long
Part No. 519
Click to Enlarge
Part No. 519
$26.00

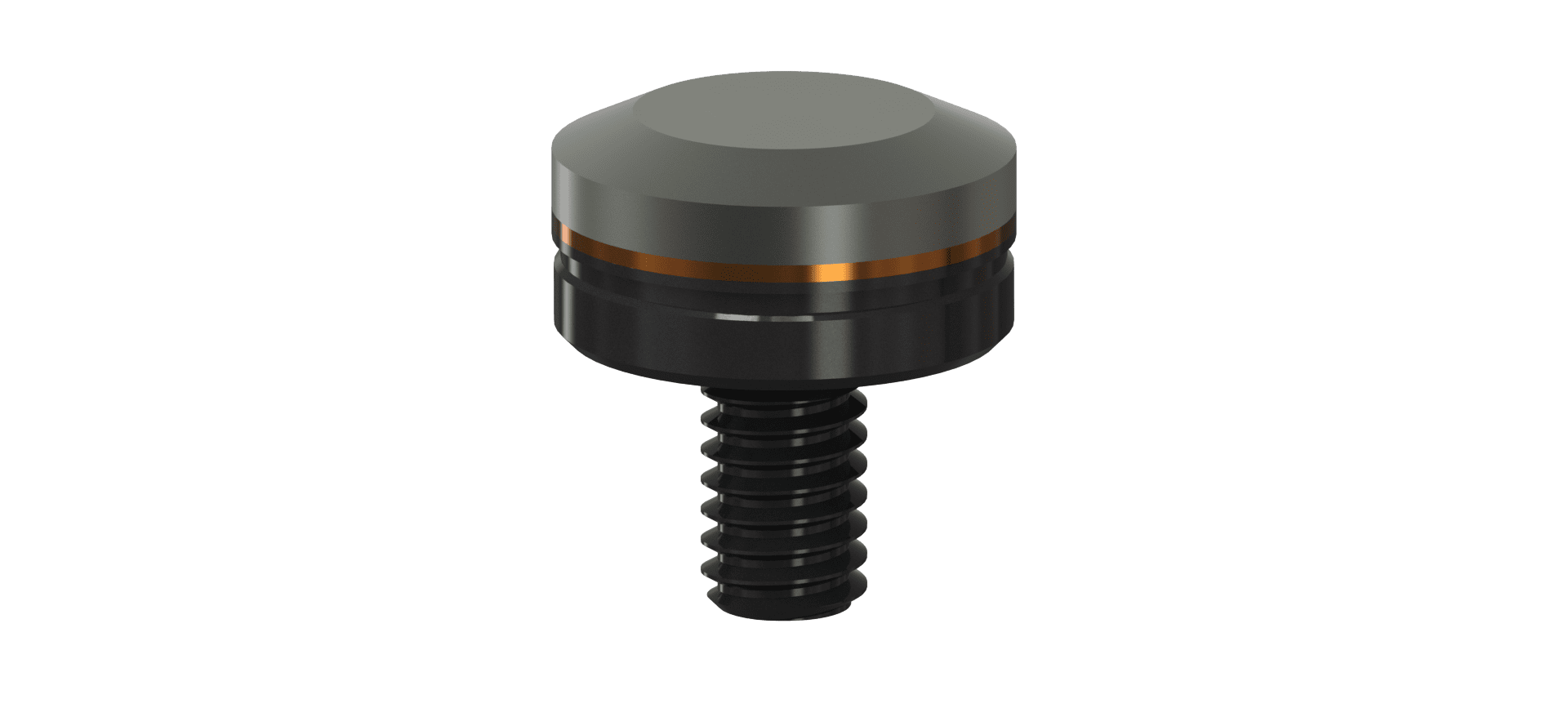

Metric Indicator Contact Point

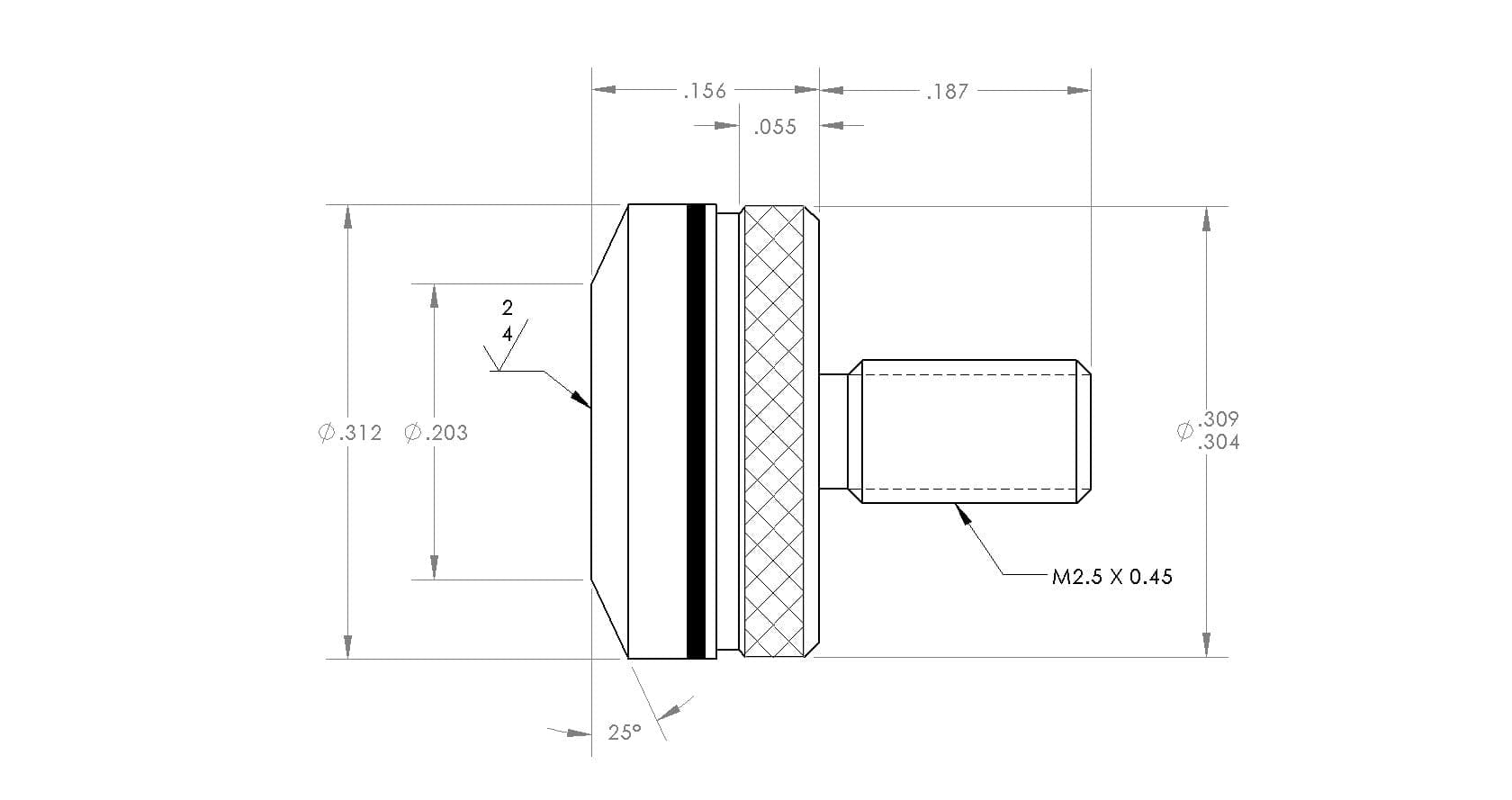

M2.5 Thds, Carbide Tipped, Flat Contact with 25° Lead Chamfer, Ø.203" Gauging Dia; Ø.312" Body Dia X .156" Long
| Qty | Percent |
|---|---|
| 10 | 5 |
| 24 | 10 |
| 50 | 15 |
| 100 | 20 |
Additional information
| Weight | 2.1 g |
|---|---|
| Length | 0.156in (3.96mm) |
| Tip / Ball Material | Carbide |
| Diameter | 0.312in (7.92mm) |
| Male Thread | M2.5X0.45 |
| Body Material | Tool Steel |
