Part No. 577

Part No. 577

$53.75

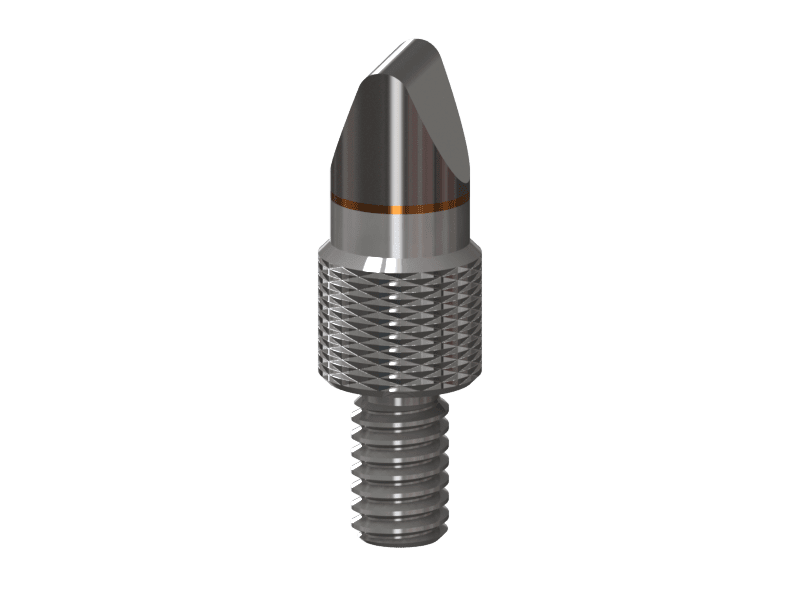

AGD Chisel Indicator Contact Point

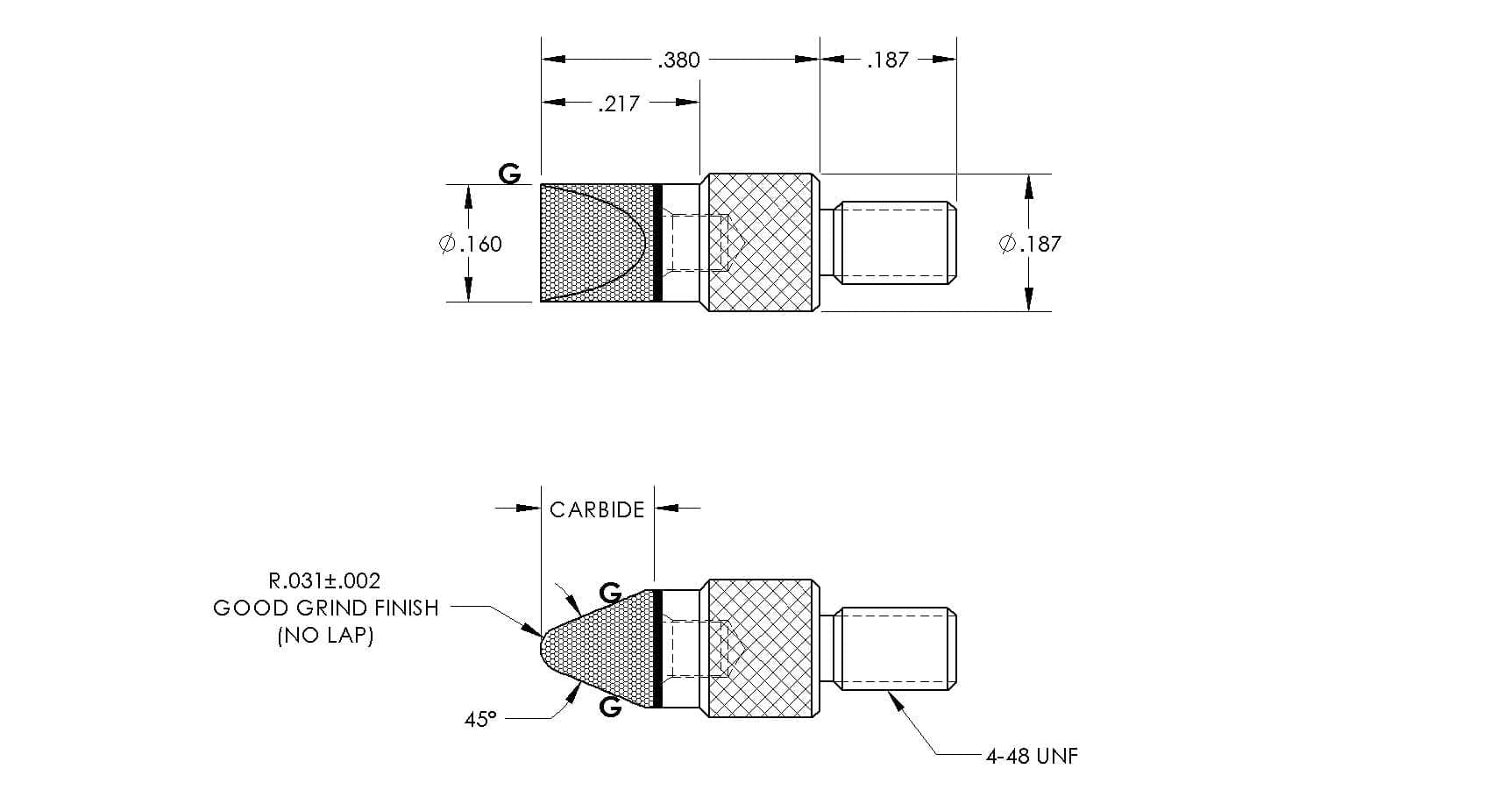

4-48 Thds, Carbide Radius Tipped Chisel Contact, Ø.160" Diameter Barrel with .031" Cylindrical Radius Tip on 45° Included Lead Angles, Ø3/16" Knurled Body X 3/8" Long

Bulk discounts are:
QtyPercent
105
2410
5015
10020

Description

4-48 Thds, Carbide Radius Tipped Chisel Contact, Ø.160″ Diameter Barrel with .031″ Cylindrical Radius Tip on 45° Included Lead Angles, Ø3/16″ Knurled Body X 3/8″ Long

Additional information

Weight 1.4 g
Length

0.380in (9.65mm)

Tip / Ball Material Carbide
Radius

0.031in (0.79mm)

Diameter

0.160in (4.06mm)

Male Thread 4-48
Body Material Stainless Steel
