Description

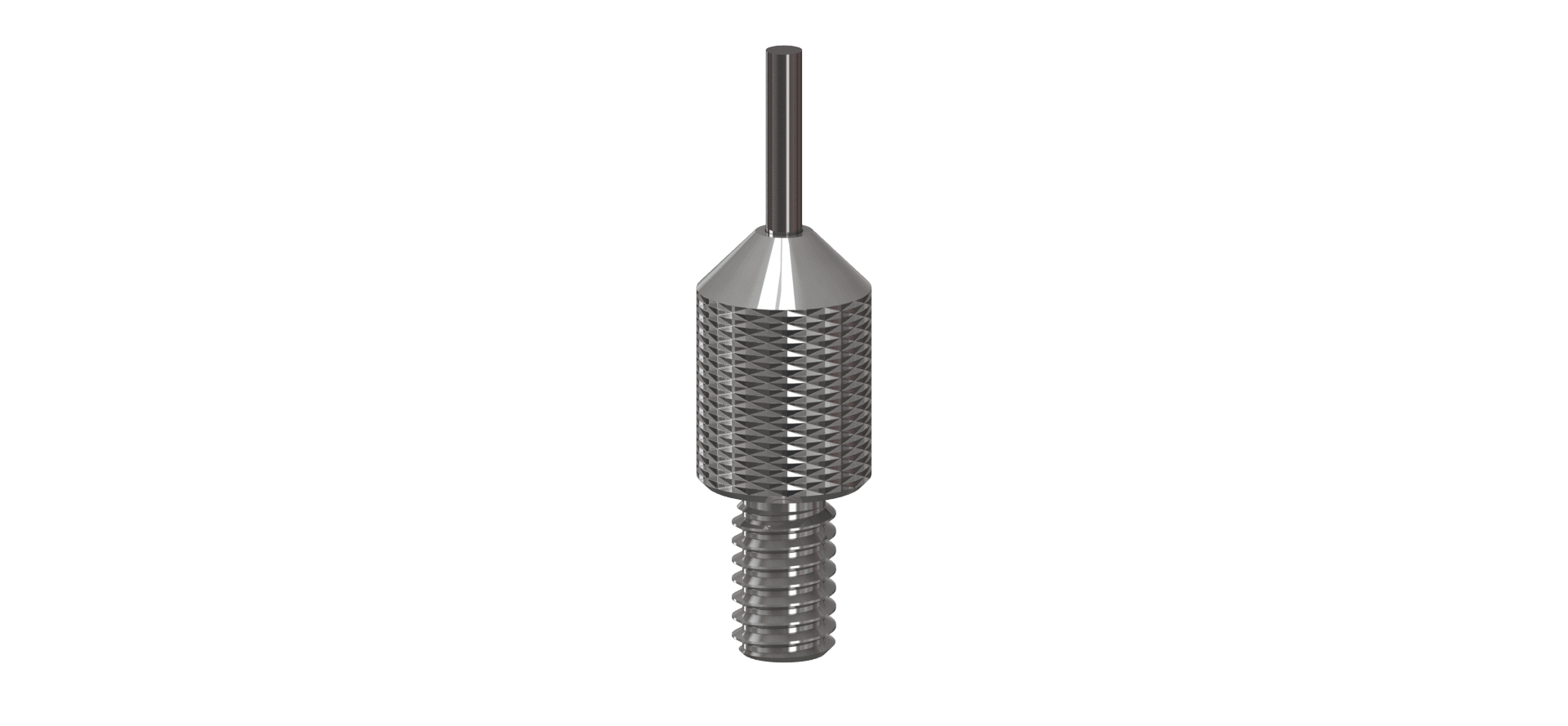

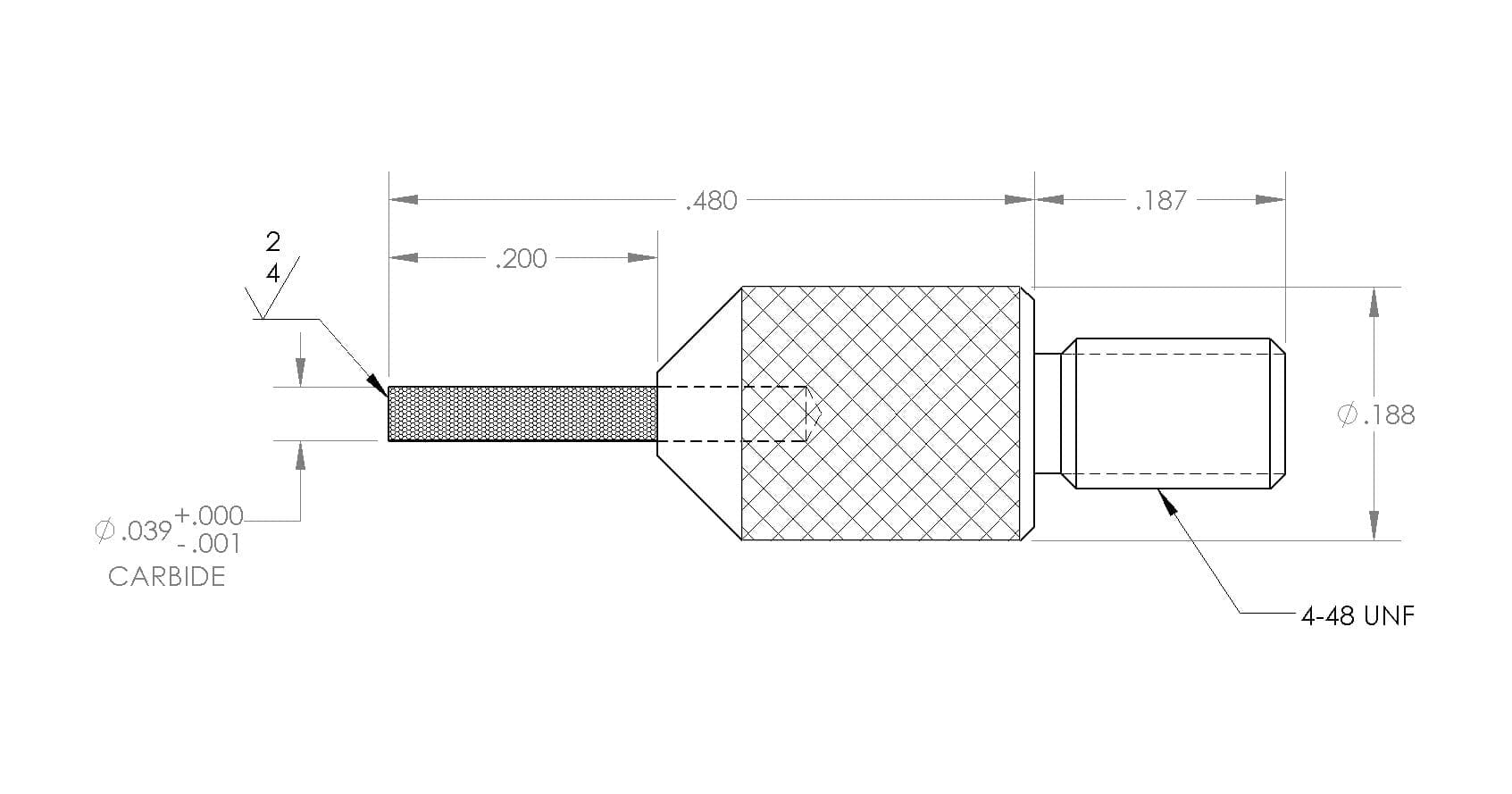

4-48 Thds, Carbide Tipped, Flat End Needle Contact, .480″ Long with Ø1.0mm Dia Stem X .200″ E.W.L.
Part No. 616
Click to Enlarge
Part No. 616
$34.25
AGD Indicator Contact Point
4-48 Thds, Carbide Tipped, Flat End Needle Contact, .480" Long with Ø1.0mm Dia Stem X .200" E.W.L.
| Qty | Percent |
|---|---|
| 10 | 5 |
| 24 | 10 |
| 50 | 15 |
| 100 | 20 |
Additional information
| Weight | 1.1 g |
|---|---|
| Length | 0.480in (12.19mm) |
| Tip / Ball Material | Carbide |
| EWL | 0.200in (5.08mm) |
| Diameter | 0.039in (1.00mm) |
| Male Thread | 4-48 |
| Body Material | Stainless Steel |
