Description

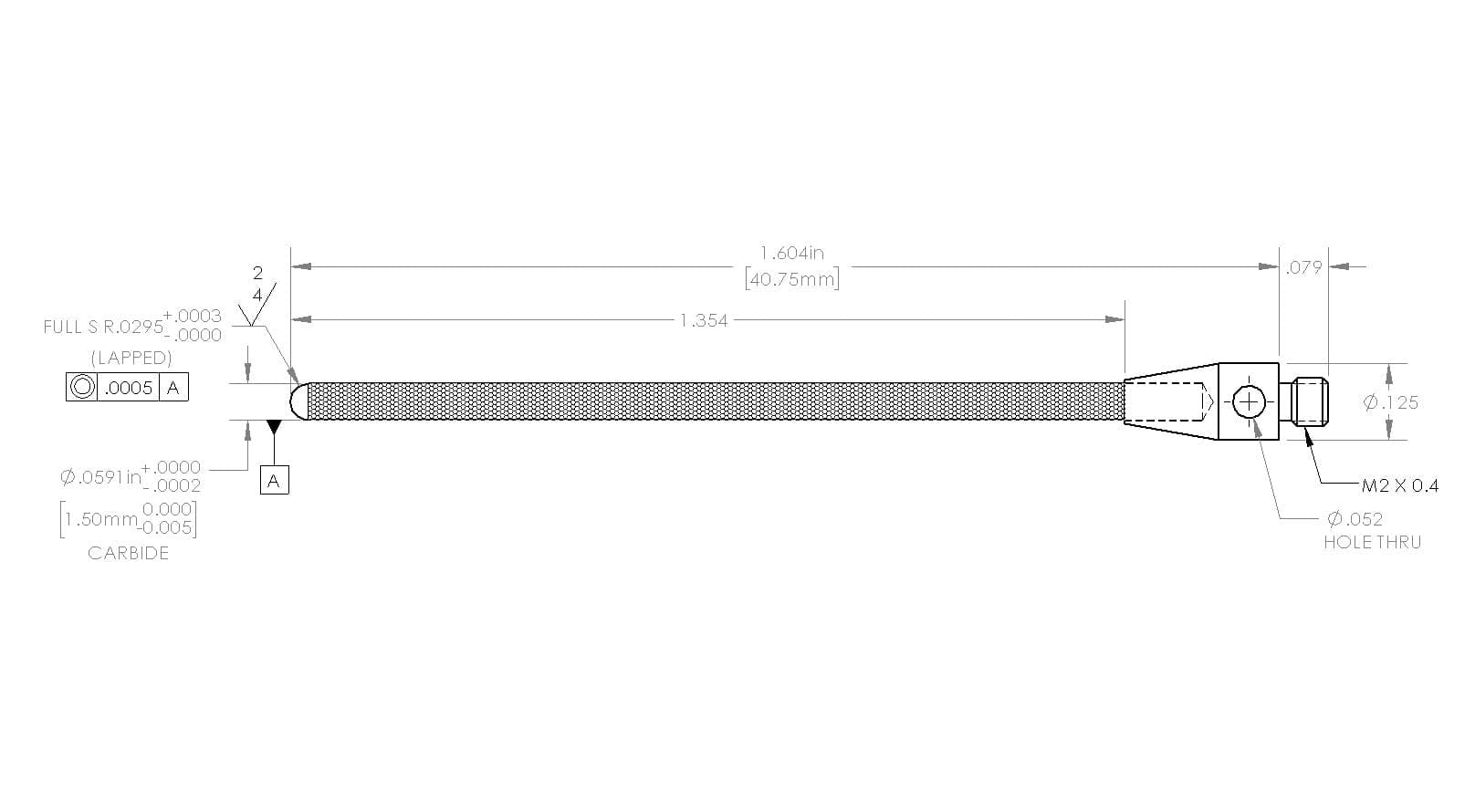

M2 Thds, 40.75mm Range Length, Parallel Hemispherical Tipped Carbide Cylinder Stylus; Ø1.5mm Cylinder Diameter X 34.4mm Long
Part No. 711-40C
Click to Enlarge
Part No. 711-40C
$58.50
CMM Replacement Cylinder Stylus
M2 Thds, 40.75mm Range Length, Parallel Hemispherical Tipped Carbide Cylinder Stylus; Ø1.5mm Cylinder Diameter X 34.4mm Long
| Qty | Percent |
|---|---|
| 10 | 5 |
| 24 | 10 |
| 50 | 15 |
| 100 | 20 |
Additional information
| Weight | 1.3 g |
|---|---|
| Length | 1.604in (40.75mm) |
| Tip / Ball Material | Carbide |
| EWL | 1.354in (34.40mm) |
| Stem Material | Carbide |
| Diameter | 0.059in (1.50mm) |
| Male Thread | M2X0.4 |
| Body Material | Stainless Steel |
| Stem Diameter | 0.059in (1.50mm) |
