Description

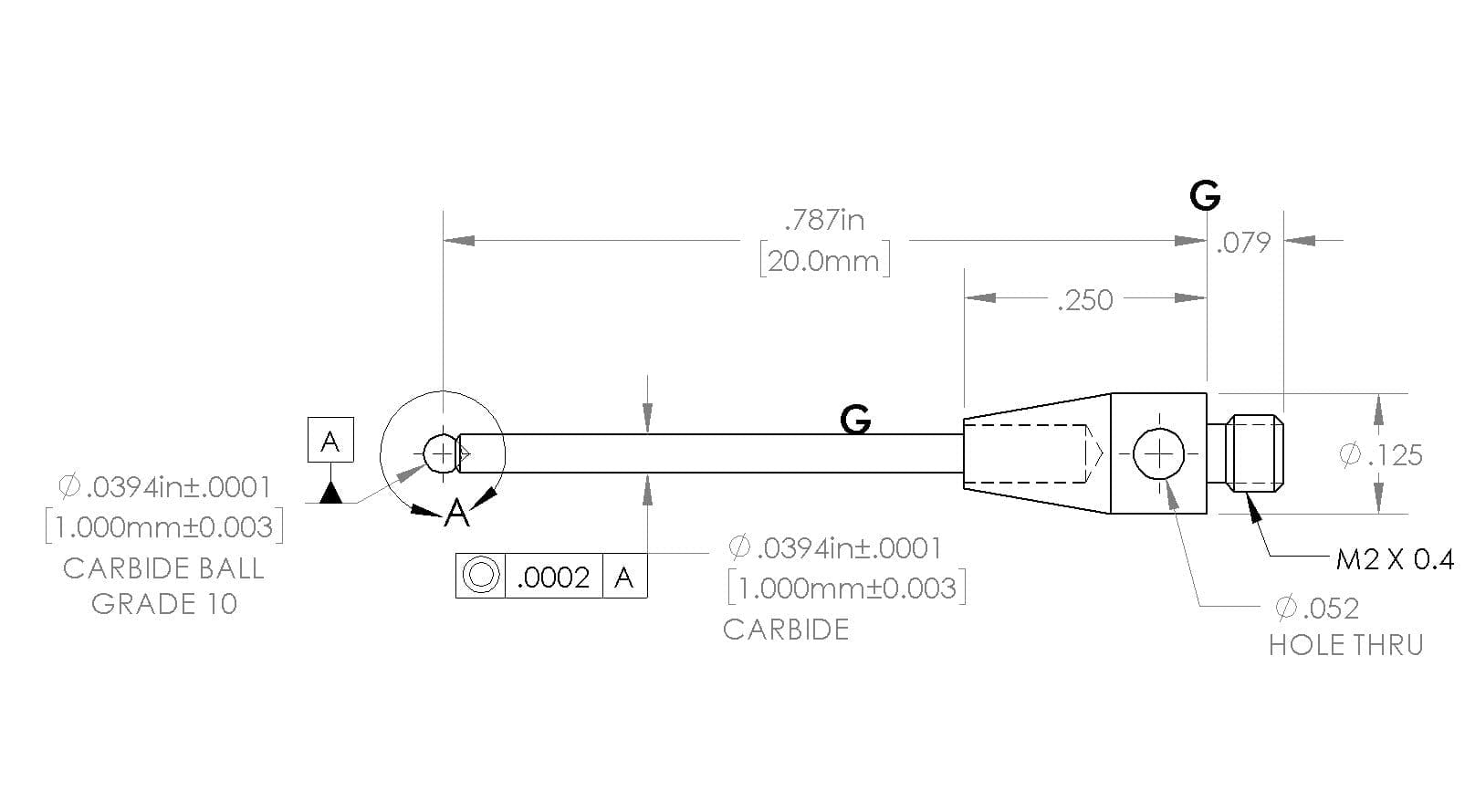

M2 Thds, 20.0mm Range Length, Precision Ball Tipped Carbide Cylinder Stylus; Ø1.0mm Carbide Ball on Ø1.0mm Carbide Shaft X 13.65mm E.W.L., Ball & Shaft Ground Concentric and to Size within ±.0001″
Part No. 714-20C
Click to Enlarge
Part No. 714-20C
$185.00
CMM Replacement Cylinder Stylus
M2 Thds, 20.0mm Range Length, Precision Ball Tipped Carbide Cylinder Stylus; Ø1.0mm Carbide Ball on Ø1.0mm Carbide Shaft X 13.65mm E.W.L., Ball & Shaft Ground Concentric and to Size within ±.0001"
| Qty | Percent |
|---|---|
| 10 | 5 |
| 24 | 10 |
| 50 | 15 |
| 100 | 20 |
Additional information
| Weight | 0.5 g |
|---|---|
| Length | 0.787in (20.00mm) |
| Ball Diameter | 0.0394in (1.000mm) |
| Tip / Ball Material | Carbide |
| EWL | 0.537in (13.65mm) |
| Stem Material | Carbide |
| Diameter | 0.039in (1.00mm) |
| Male Thread | M2X0.4 |
| Body Material | Stainless Steel |
| Stem Diameter | 0.039in (1.00mm) |
