Description

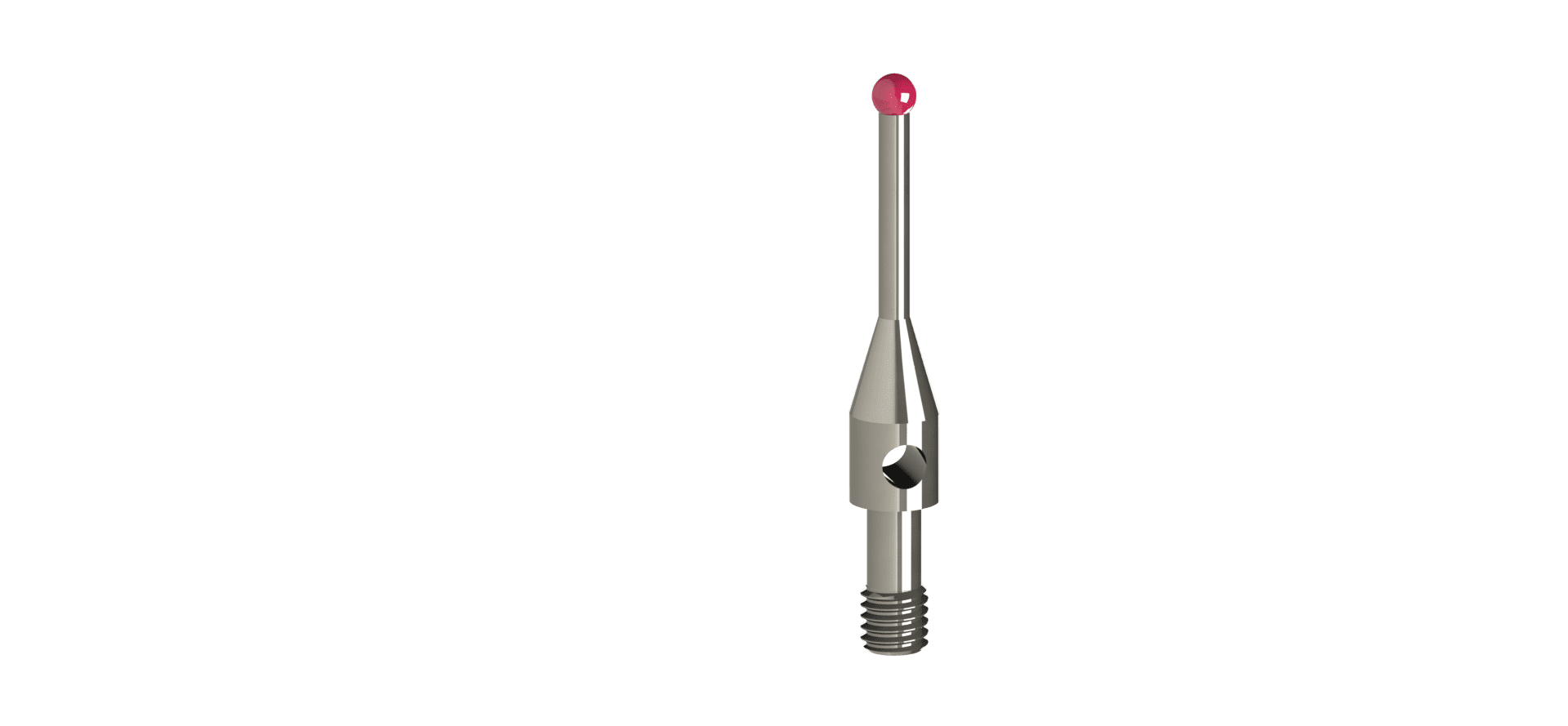

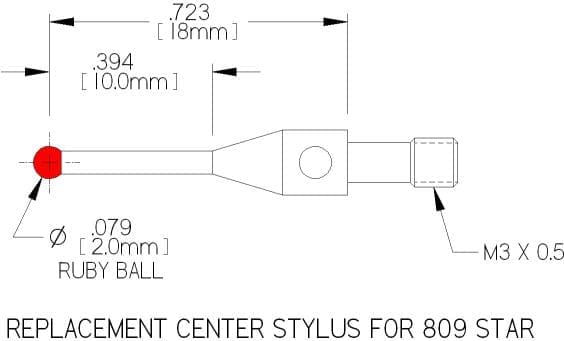

M3 Thds, 20.0mm Range Length, Ø2.0mm Ruby Ball on Ø1.4mm Steel Stem X 10.0mm E.W.L., Extended Threads, Center Stylus for Carbide Probes Part No. 809 (Star Stylus)
Part No. 809C
Click to Enlarge
Part No. 809C
$40.25
CMM Replacement Stylus
M3 Thds, 20.0mm Range Length, Ø2.0mm Ruby Ball on Ø1.4mm Steel Stem X 10.0mm E.W.L., Extended Threads, Center Stylus for Carbide Probes Part No. 809 (Star Stylus)
| Qty | Percent |
|---|---|
| 10 | 5 |
| 24 | 10 |
| 50 | 15 |
| 100 | 20 |
Additional information
| Weight | 0.9 g |
|---|---|
| Length | 0.723in (18.36mm) |
| Ball Diameter | 0.0787in (2.000mm) |
| Tip / Ball Material | Ruby |
| EWL | 0.394in (10.00mm) |
| Stem Material | Stainless Steel |
| Male Thread | M3X0.5 |
| Body Material | Stainless Steel |
| Stem Diameter | 0.055in (1.40mm) |
