$41.50

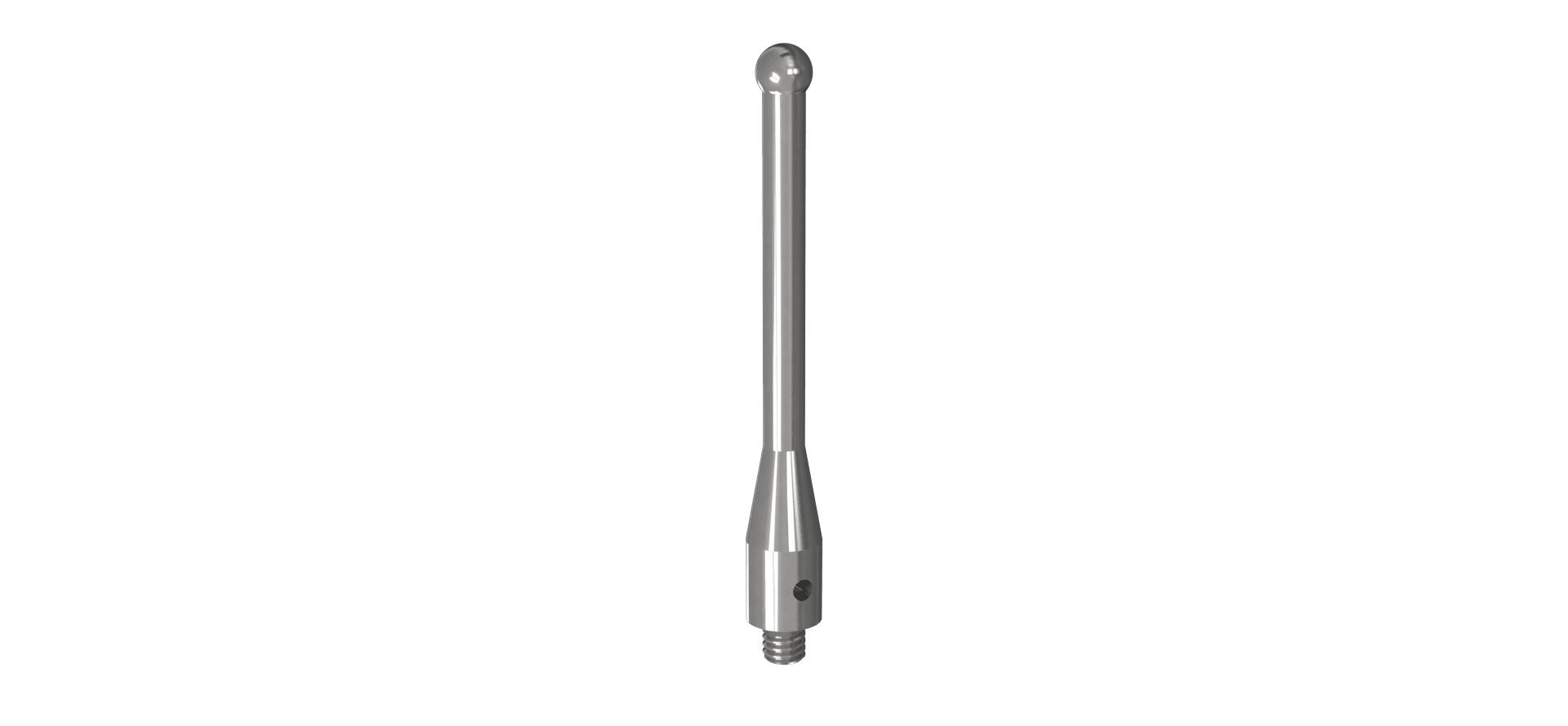

CMM Replacement Stylus
M4 Thds, 50.0mm Range Length, Ø5.0mm Carbide Ball on Ø3.81mm Stainless Steel Stem X 33.5mm E.W.L. [Stylus is Electrically Conductive - Resistance is less than 0.1 Ohms - Compatible for use in Job Contact or Electrical Discharge Machining EDM Touch Probe Applications]
| Qty | Percent |
|---|---|
| 10 | 5 |
| 24 | 10 |
| 50 | 15 |
| 100 | 20 |

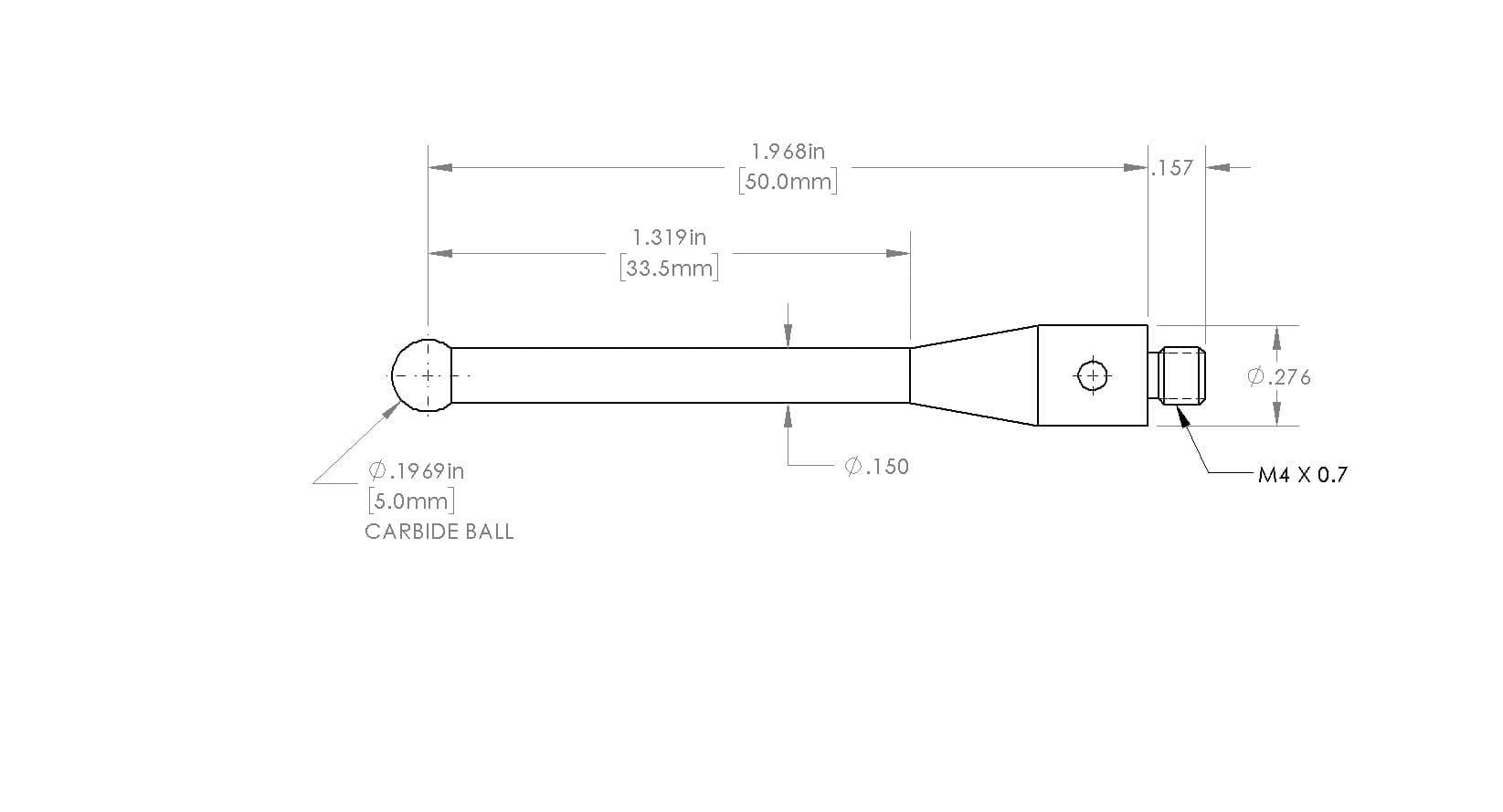

M4 Thds, 50.0mm Range Length, Ø5.0mm Carbide Ball on Ø3.81mm Stainless Steel Stem X 33.5mm E.W.L.
[Stylus is Electrically Conductive – Resistance is less than 0.1 Ohms – Compatible for use in Job Contact or Electrical Discharge Machining EDM Touch Probe Applications]
| Weight | 7.2 g |
|---|---|
| Length | 1.969in (50.00mm) |
| Ball Diameter | 0.1969in (5.000mm) |
| Tip / Ball Material | Carbide |
| EWL | 1.319in (33.50mm) |
| Stem Material | Stainless Steel |
| Male Thread | M4X0.7 |
| Body Material | Stainless Steel |
| Stem Diameter | 0.150in (3.81mm) |
| OEM Manufacturer | Renishaw |
| OEM Part Number | A-5000-7670 |
