Description
M4 Thds, 50.0mm Range Length, Ø5.0mm Carbide Ball on Ø3.95mm Ceramic Stem X 33.5mm E.W.L.
Part No. 811-5
Click to Enlarge
Part No. 811-5
$43.75

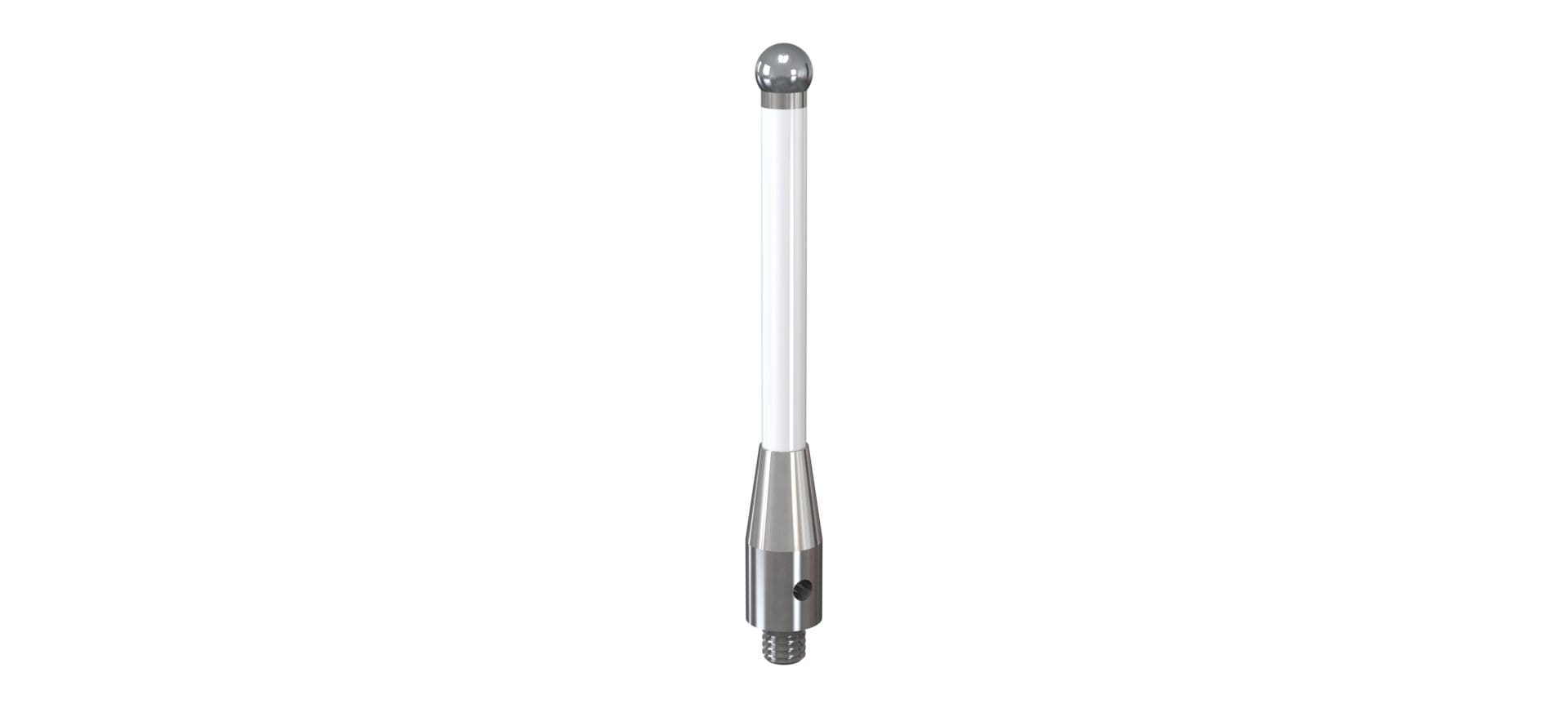

CMM Replacement Stylus

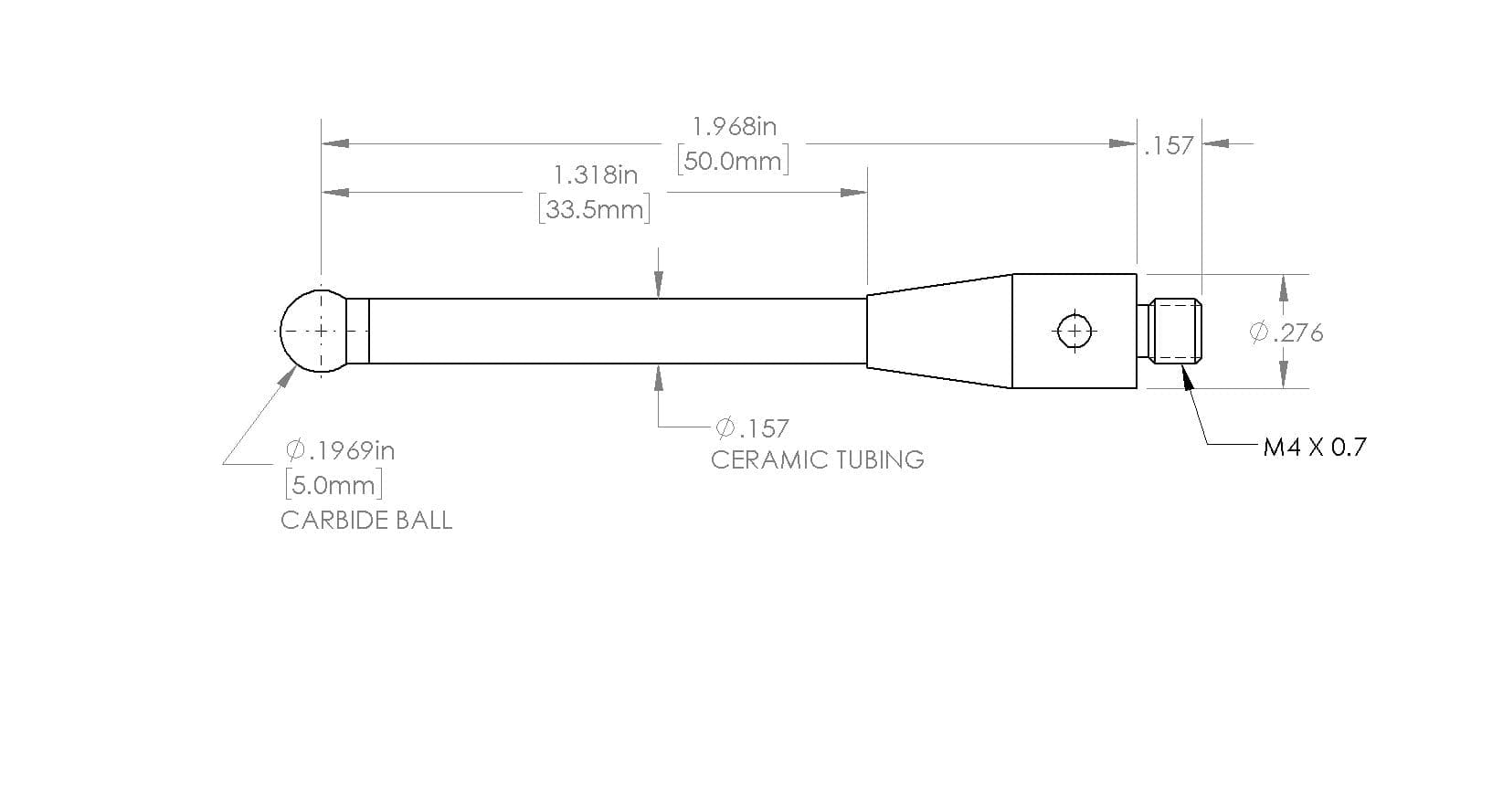

M4 Thds, 50.0mm Range Length, Ø5.0mm Carbide Ball on Ø3.95mm Ceramic Stem X 33.5mm E.W.L.
| Qty | Percent |
|---|---|
| 10 | 5 |
| 24 | 10 |
| 50 | 15 |
| 100 | 20 |
Additional information
| Weight | 5.9 g |
|---|---|
| Length | 1.969in (50.00mm) |
| Ball Diameter | 0.1969in (5.000mm) |
| Tip / Ball Material | Carbide |
| EWL | 1.319in (33.50mm) |
| Stem Material | Ceramic |
| Male Thread | M4X0.7 |
| Body Material | Stainless Steel |
| Stem Diameter | 0.156in (3.95mm) |
