Description

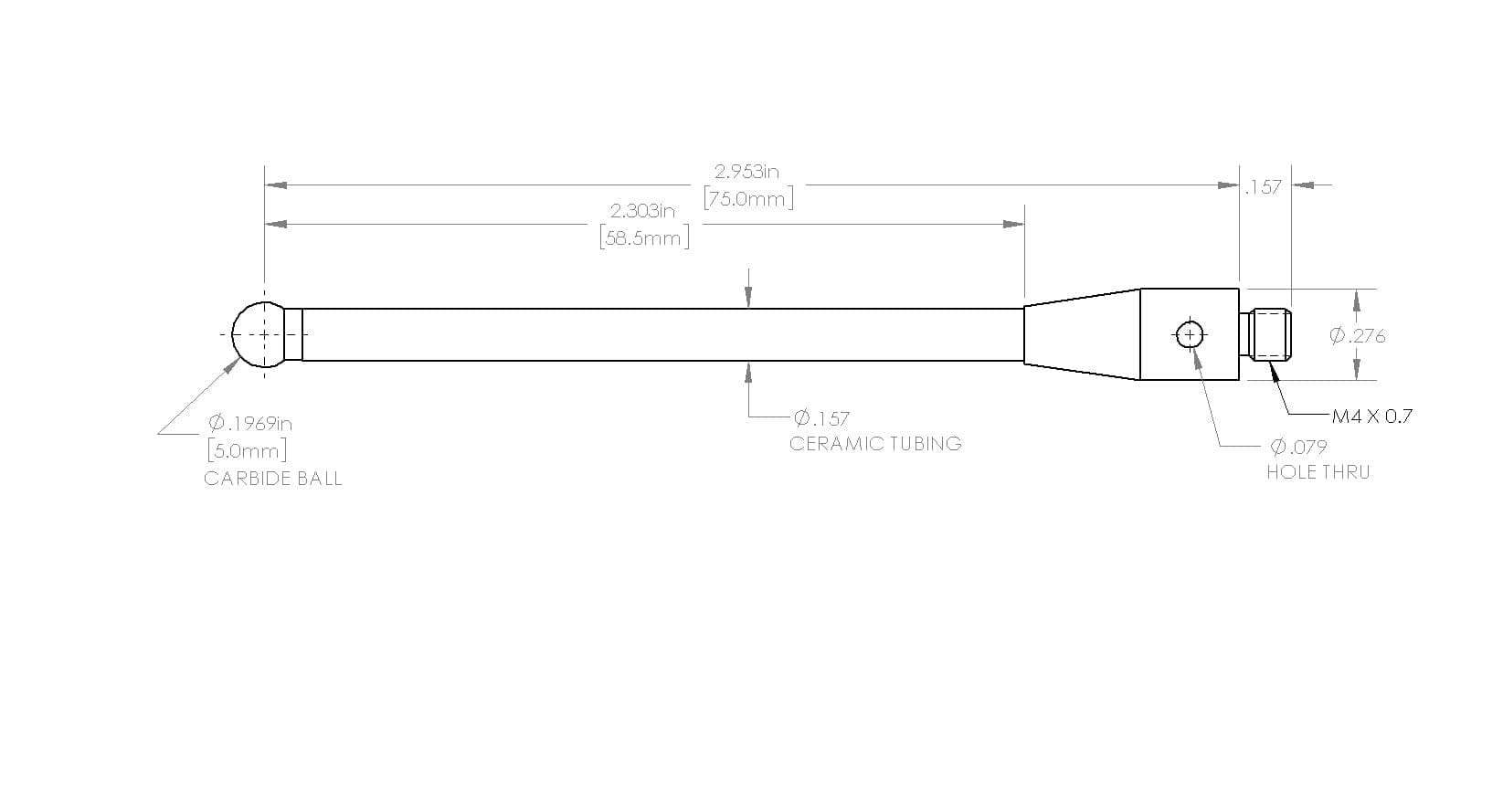

M4 Thds, 75.0mm Range Length, Ø5.0mm Carbide Ball on Ø3.95mm Ceramic Stem X 58.5mm E.W.L.
Part No. 821-5
Click to Enlarge
Part No. 821-5
$46.00
CMM Replacement Stylus
M4 Thds, 75.0mm Range Length, Ø5.0mm Carbide Ball on Ø3.95mm Ceramic Stem X 58.5mm E.W.L.
| Qty | Percent |
|---|---|
| 10 | 5 |
| 24 | 10 |
| 50 | 15 |
| 100 | 20 |
Additional information
| Weight | 7 g |
|---|---|
| Length | 2.953in (75.00mm) |
| Ball Diameter | 0.1969in (5.000mm) |
| Tip / Ball Material | Carbide |
| EWL | 2.303in (58.50mm) |
| Stem Material | Ceramic |
| Male Thread | M4X0.7 |
| Body Material | Stainless Steel |
| Stem Diameter | 0.156in (3.95mm) |
