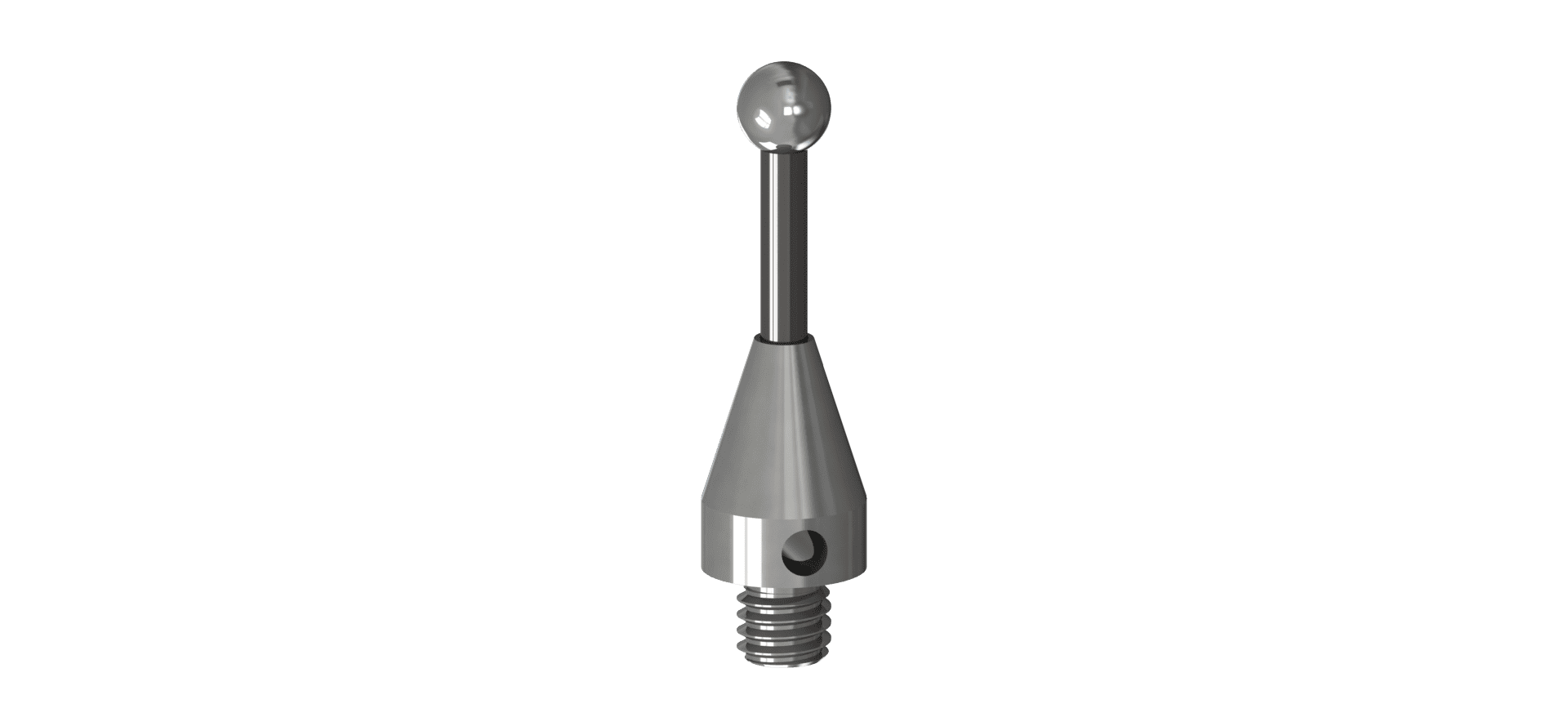

840-4L

CMM Replacement Stylus

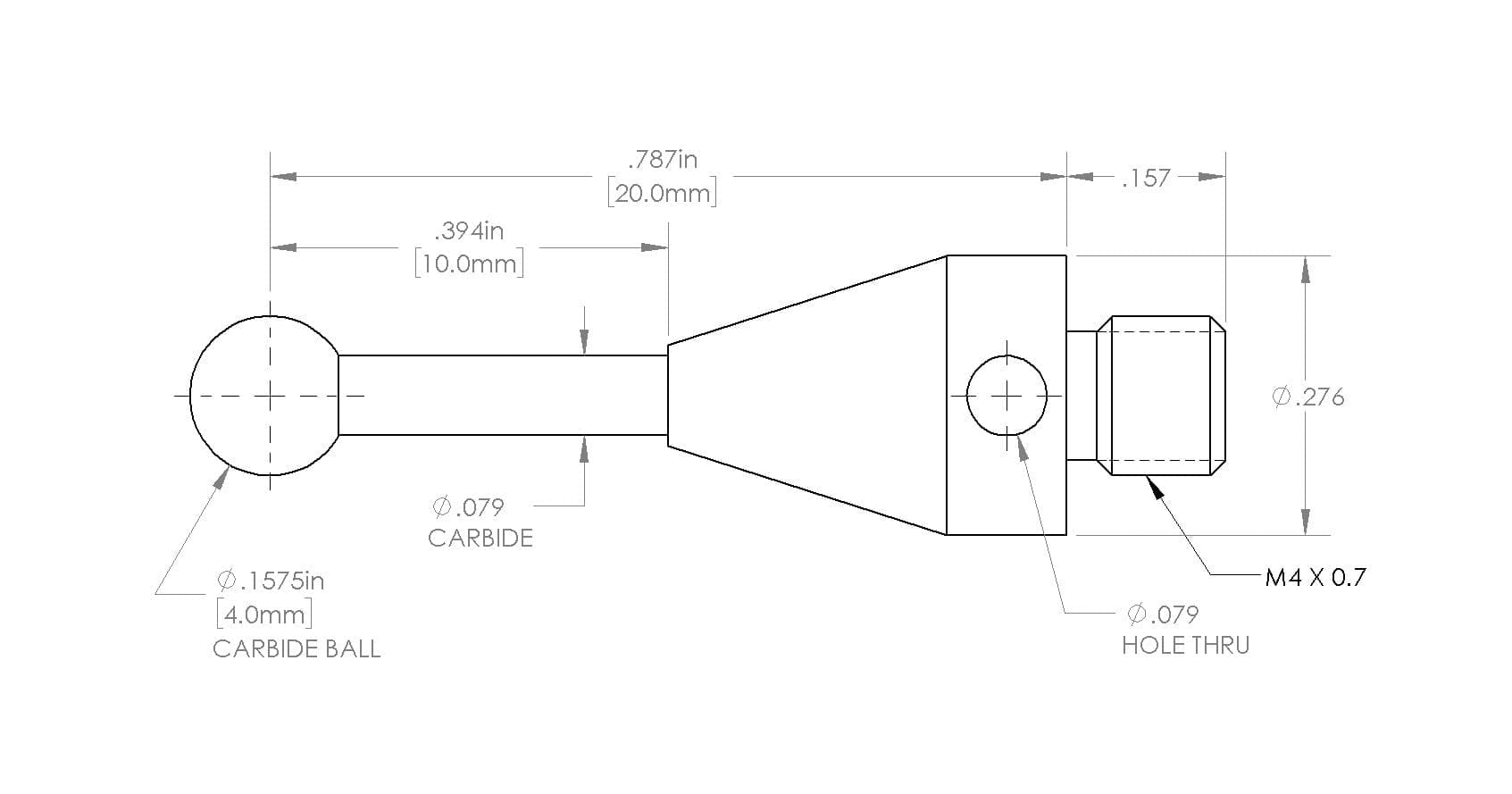

M4 Thds, 20.0mm Range Length, Ø4.0mm Carbide Ball on Ø2.0mm Carbide Stem X 10.0mm E.W.L.
[Stylus is Electrically Conductive – Resistance is less than 0.1 Ohms – Compatible for use in Job Contact or Electrical Discharge Machining EDM Touch Probe Applications]

$54.50

Description

M4 Thds, 20.0mm Range Length, Ø4.0mm Carbide Ball on Ø2.0mm Carbide Stem X 10.0mm E.W.L.
[Stylus is Electrically Conductive – Resistance is less than 0.1 Ohms – Compatible for use in Job Contact or Electrical Discharge Machining EDM Touch Probe Applications]

Additional information

Male Thread

M4X0.7

Weight 3 g
Length

0.787in (20.00mm)

EWL

0.394in (10.00mm)

Ball Diameter

Tip / Ball Material

Carbide

Stem Diameter

0.079in (2.00mm)

Stem Material

Carbide

Bulk discounts are:
QtyPercent
105
2410
5015
10020
