Description

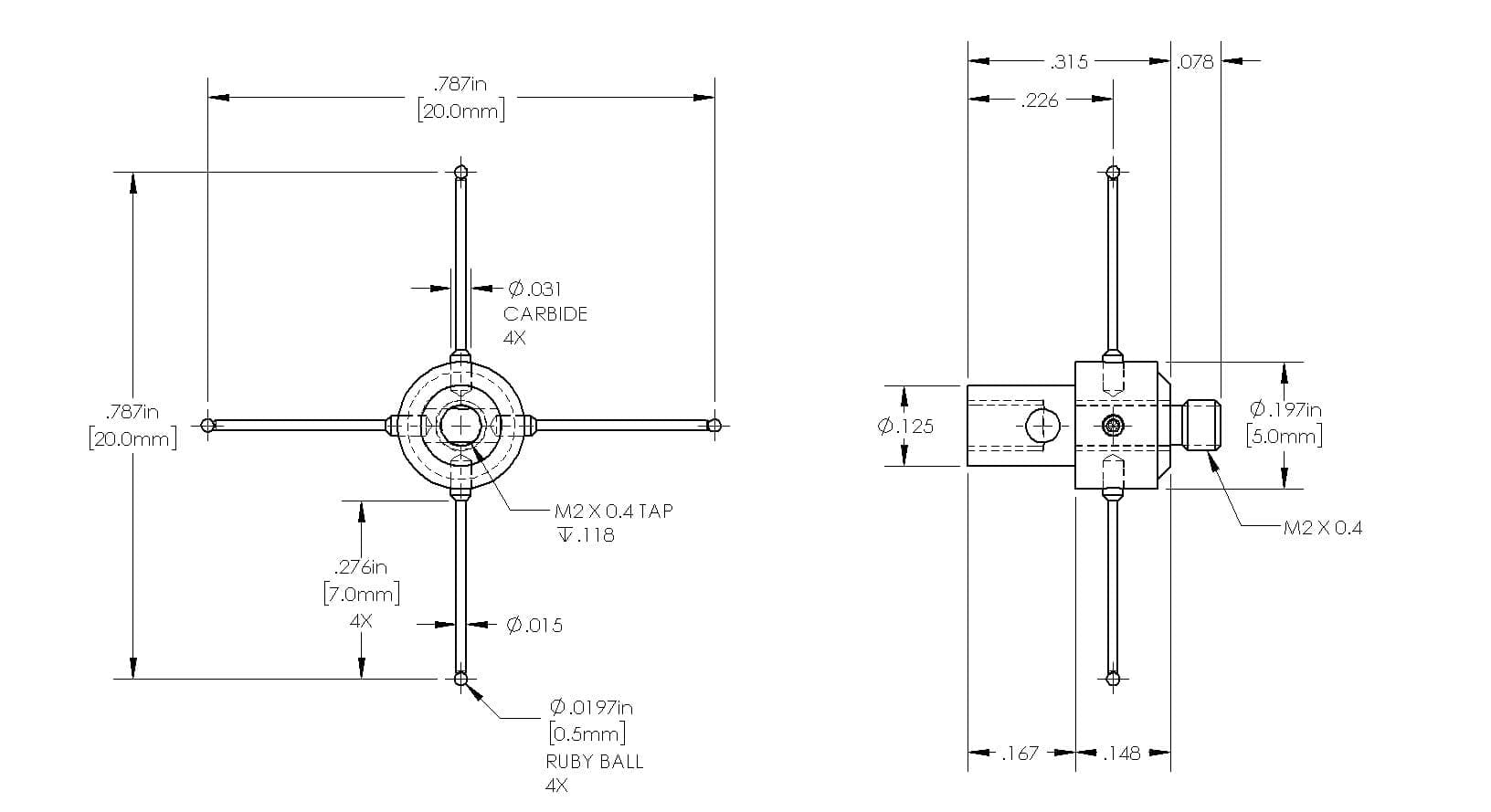

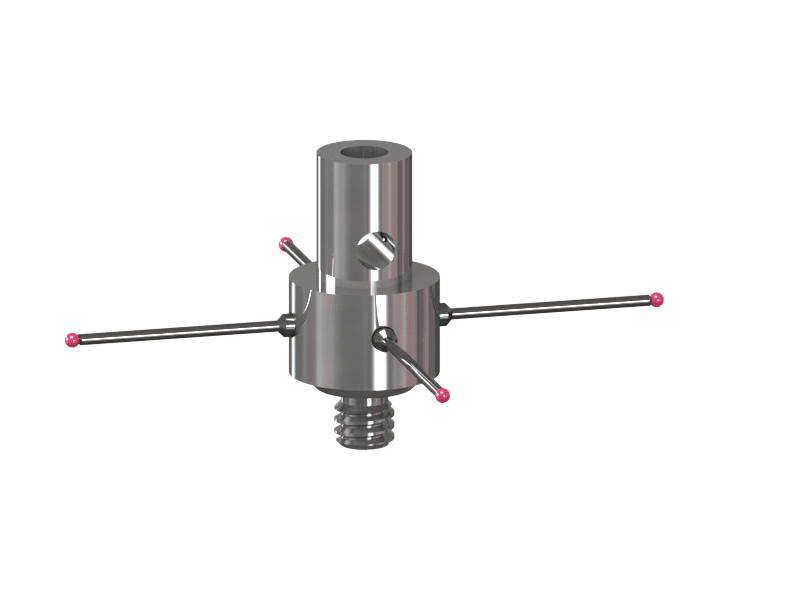

M2 Thds, 4 Way Adjustable Star Stylus with Center Post, 20.0mm Working Diameter with Ø.5mm Ruby Styli
Part No. 860-.5R
Click to Enlarge
Part No. 860-.5R
$332.00
CMM Replacement Star Stylus
M2 Thds, 4 Way Adjustable Star Stylus with Center Post, 20.0mm Working Diameter with Ø.5mm Ruby Styli
| Qty | Percent |
|---|---|
| 10 | 5 |
| 24 | 10 |
| 50 | 15 |
| 100 | 20 |
Additional information
| Weight | 0.8 g |
|---|---|
| Ball Diameter | 0.0197in (0.500mm) |
| Tip / Ball Material | Ruby |
| Stem Material | Carbide |
| Diameter | 0.787in (20.00mm) |
| Male Thread | M2X0.4 |
| Body Material | Stainless Steel |
| Stem Diameter | 0.015in (0.38mm) |
| OEM Manufacturer | Hexagon Metrology, Renishaw, Tesa |
| OEM Part Number | 03969210, A-5003-4787 |
