$105.25
CMM Replacement Stylus

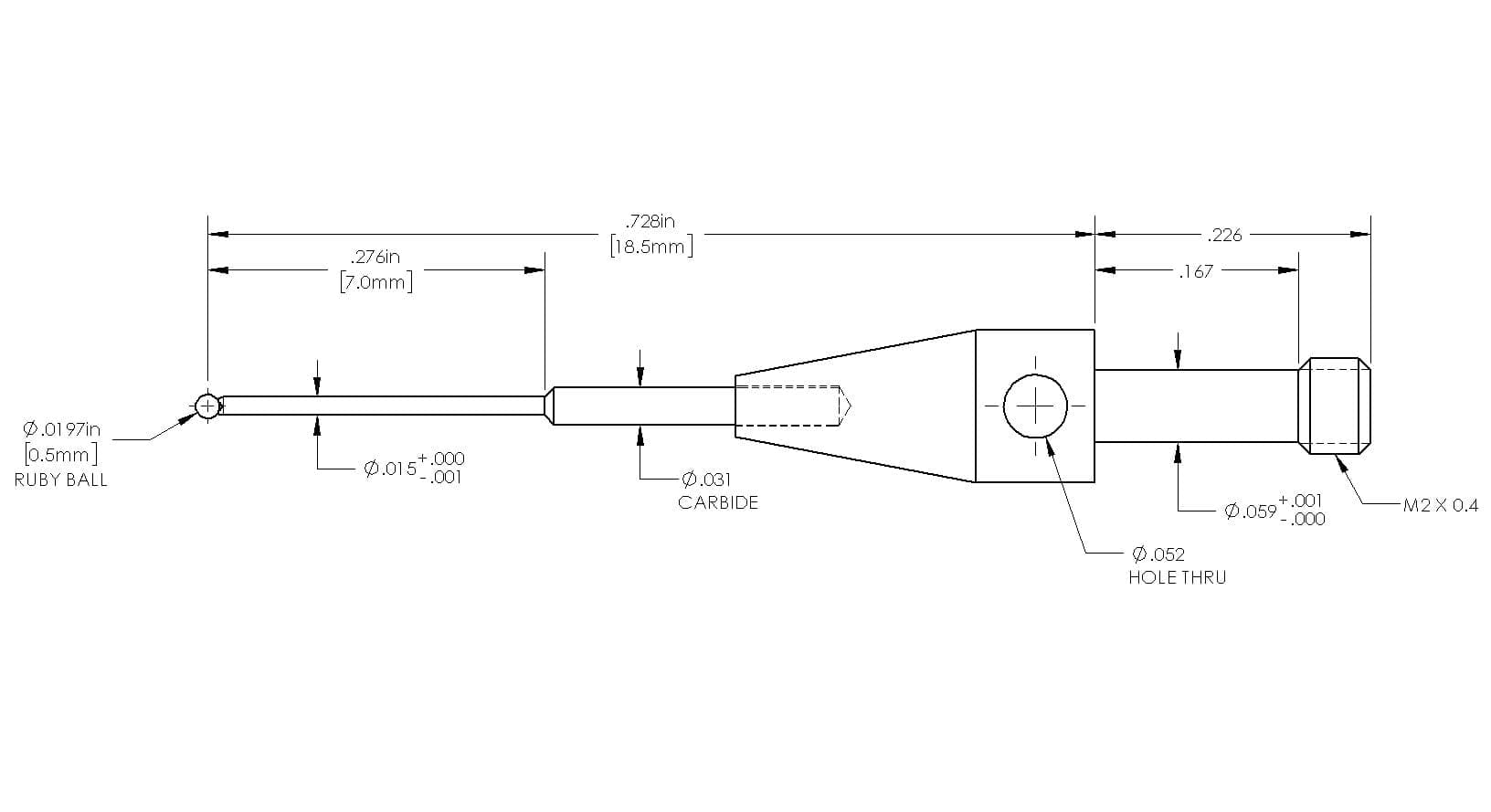

M2 Thds, 18.5mm Range Length, Ø.5mm Ruby Ball on Ø.38mm Carbide Stem X 7.0mm E.W.L., Extended Threads, Can be used as Common Center Stylus for Carbide Probes Part Numbers 830 & 860 Series Star Styli in Place of Center Post; and is Compatible with Part Numbers 278 & 819, (Adjustable Stylus Centers)
| Qty | Percent |
|---|---|
| 10 | 5 |
| 24 | 10 |
| 50 | 15 |
| 100 | 20 |
M2 Thds, 18.5mm Range Length, Ø.5mm Ruby Ball on Ø.38mm Carbide Stem X 7.0mm E.W.L., Extended Threads, Can be used as Common Center Stylus for Carbide Probes Part Numbers 830 & 860 Series Star Styli in Place of Center Post; and is Compatible with Part Numbers 278 & 819, (Adjustable Stylus Centers)
| Weight | 0.4 g |
|---|---|
| Length | 0.728in (18.50mm) |
| Ball Diameter | 0.0197in (0.500mm) |
| Tip / Ball Material | Ruby |
| EWL | 0.276in (7.00mm) |
| Stem Material | Carbide |
| Male Thread | M2X0.4 |
| Body Material | Stainless Steel |
| Stem Diameter | 0.015in (0.38mm) |
| OEM Manufacturer | Renishaw |
| OEM Part Number | A-5003-4790 |
