Description

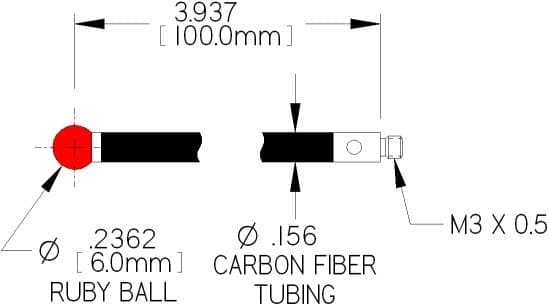

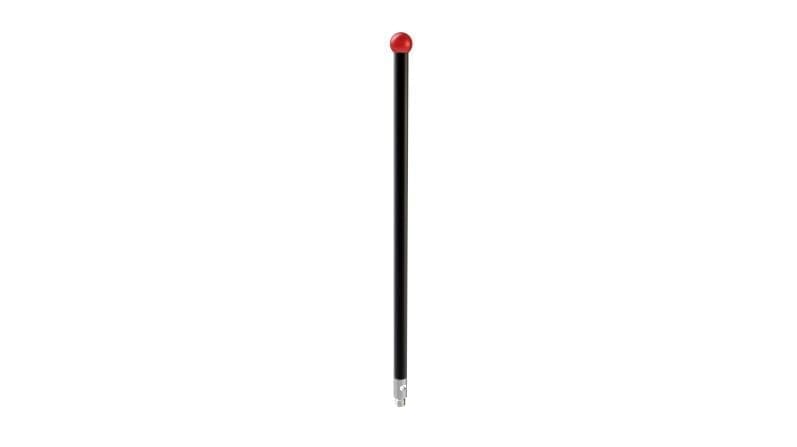

M3 Thds, 100.0mm Range Length, Ø6.0mm Ruby Ball on Ø4.0mm Dia. Carbon Fiber Stem X 100.0mm E.W.L.
Part No. 93100-6R
Click to Enlarge
Part No. 93100-6R
$145.00
CMM Replacement Stylus
M3 Thds, 100.0mm Range Length, Ø6.0mm Ruby Ball on Ø4.0mm Dia. Carbon Fiber Stem X 100.0mm E.W.L.
| Qty | Percent |
|---|---|
| 10 | 5 |
| 24 | 10 |
| 50 | 15 |
| 100 | 20 |
Additional information
| Weight | 2.5 g |
|---|---|
| Length | 3.937in (100.00mm) |
| Ball Diameter | 0.2362in (6.000mm) |
| Tip / Ball Material | Ruby |
| EWL | 3.937in (100.00mm) |
| Stem Material | Carbon Fiber |
| Male Thread | M3X0.5 |
| Body Material | Stainless Steel |
| OEM Manufacturer | Mitutoyo, Renishaw |
| OEM Part Number | A-5003-4861, K651307 |
