Description

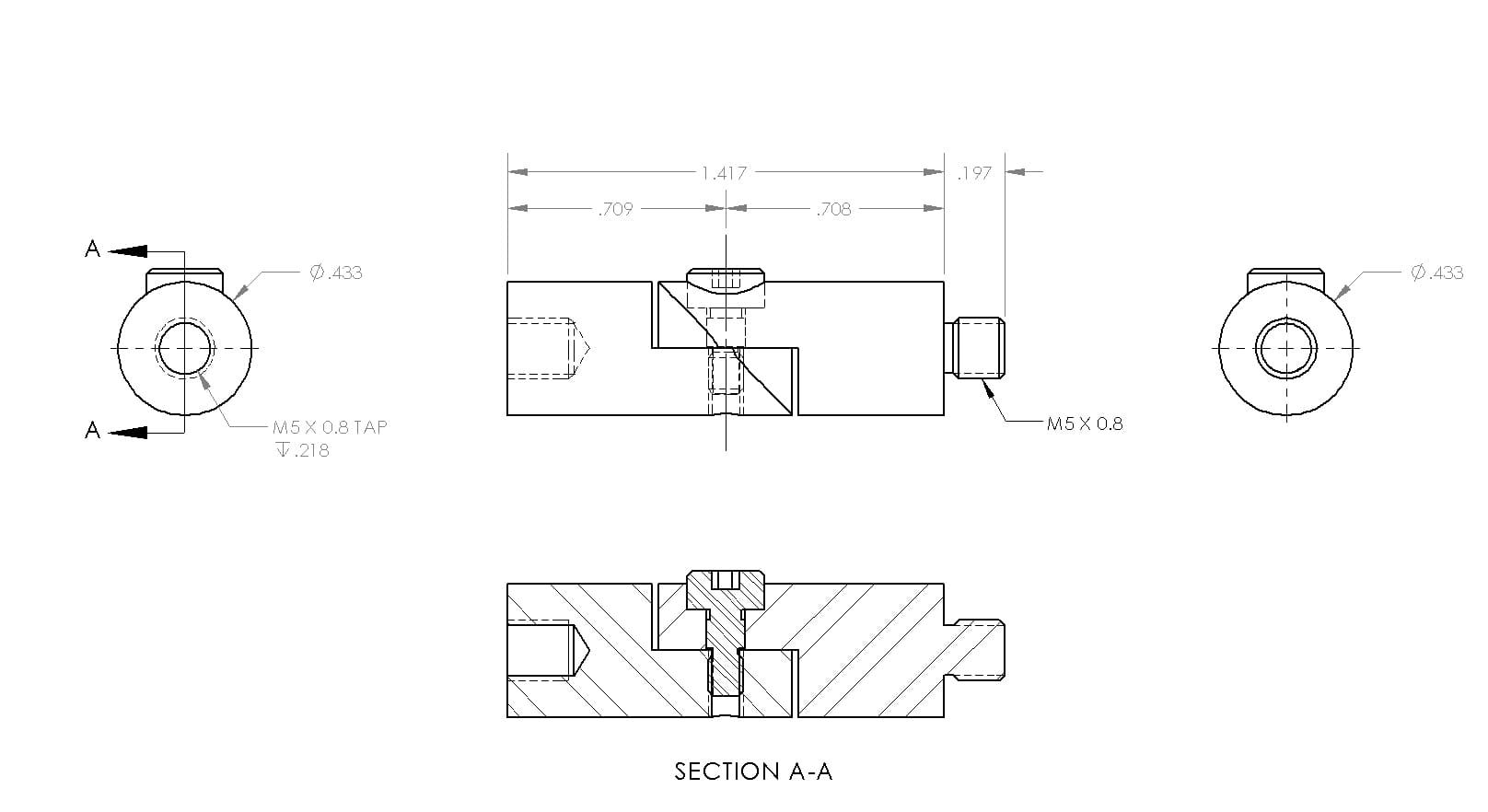

Steel Knuckle – Articulated Joint; Adjustable 180° Rotation, M5 Thds, Ø11mm Body Dia. X 36.0mm Long
Part No. CPZ000-0010
Click to Enlarge
Part No. CPZ000-0010
$85.75
CMM Replacement Stylus Knuckle
Steel Knuckle - Articulated Joint; Adjustable 180° Rotation, M5 Thds, Ø11mm Body Dia. X 36.0mm Long
| Qty | Percent |
|---|---|
| 10 | 5 |
| 24 | 10 |
| 50 | 15 |
| 100 | 20 |
Additional information
| Weight | 25 g |
|---|---|
| Length | 1.417in (36.00mm) |
| Stem Material | Stainless Steel |
| Female Thread | M5X0.8 |
| Male Thread | M5X0.8 |
| Body Material | Stainless Steel |
| Length Units | mm |
| OEM Manufacturer | Renishaw, Zeiss |
| OEM Part Number | 600342-9002-000, A-5555-0218 |
