Description

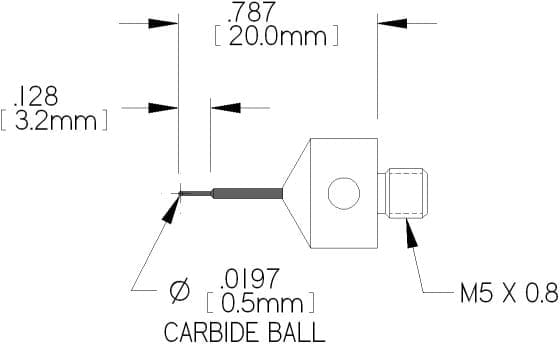

M5 Thds, 20.0mm Range Length, Ø.5mm Carbide Ball on Ø.38mm Carbide Stem X 3.25mm E.W.L.
Part No. CPZ000-0520C
Click to Enlarge
Part No. CPZ000-0520C
$59.00
CMM Replacement Stylus
M5 Thds, 20.0mm Range Length, Ø.5mm Carbide Ball on Ø.38mm Carbide Stem X 3.25mm E.W.L.
| Qty | Percent |
|---|---|
| 10 | 5 |
| 24 | 10 |
| 50 | 15 |
| 100 | 20 |
Additional information
| Weight | 5.7 g |
|---|---|
| Length | 0.787in (20.00mm) |
| Ball Diameter | 0.0197in (0.500mm) |
| Tip / Ball Material | Carbide |
| EWL | 0.128in (3.25mm) |
| Stem Material | Carbide |
| Male Thread | M5X0.8 |
| Body Material | Stainless Steel |
| Stem Diameter | 0.015in (0.38mm) |
