Description
Hardened Steel Mounted Disk, Ø10.0mm Spherical Dia. X 3.175mm Disk Depth, 21.5mm Long
Part No. CPZ341-8090
Click to Enlarge
Part No. CPZ341-8090
$144.75

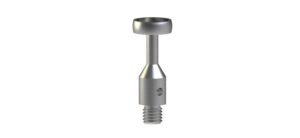

CMM Replacement Disc Stylus

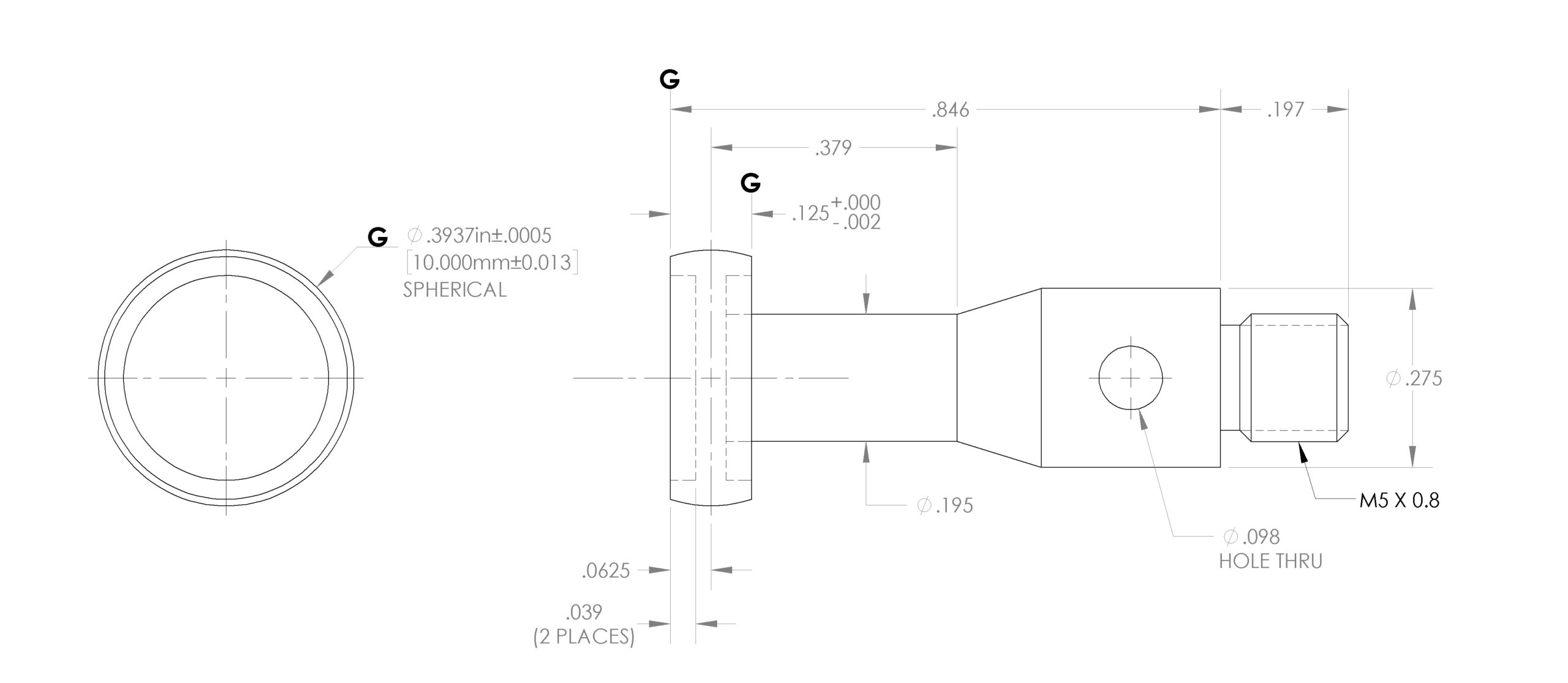

Hardened Steel Mounted Disk, Ø10.0mm Spherical Dia. X 3.175mm Disk Depth, 21.5mm Long
| Qty | Percent |
|---|---|
| 10 | 5 |
| 24 | 10 |
| 50 | 15 |
| 100 | 20 |
Additional information
| Weight | 5.5 g |
|---|---|
| Length | 0.846in (21.50mm) |
| Tip / Ball Material | Hardened Steel |
| Stem Material | Tool Steel |
| Diameter | 0.394in (10.00mm) |
| Male Thread | M5X0.8 |
| Body Material | Tool Steel |
| Stem Diameter | 0.195in (4.95mm) |
| OEM Manufacturer | Renishaw, Zeiss |
| OEM Part Number | 600341-8090-000, A-5555-0121 |
