Description

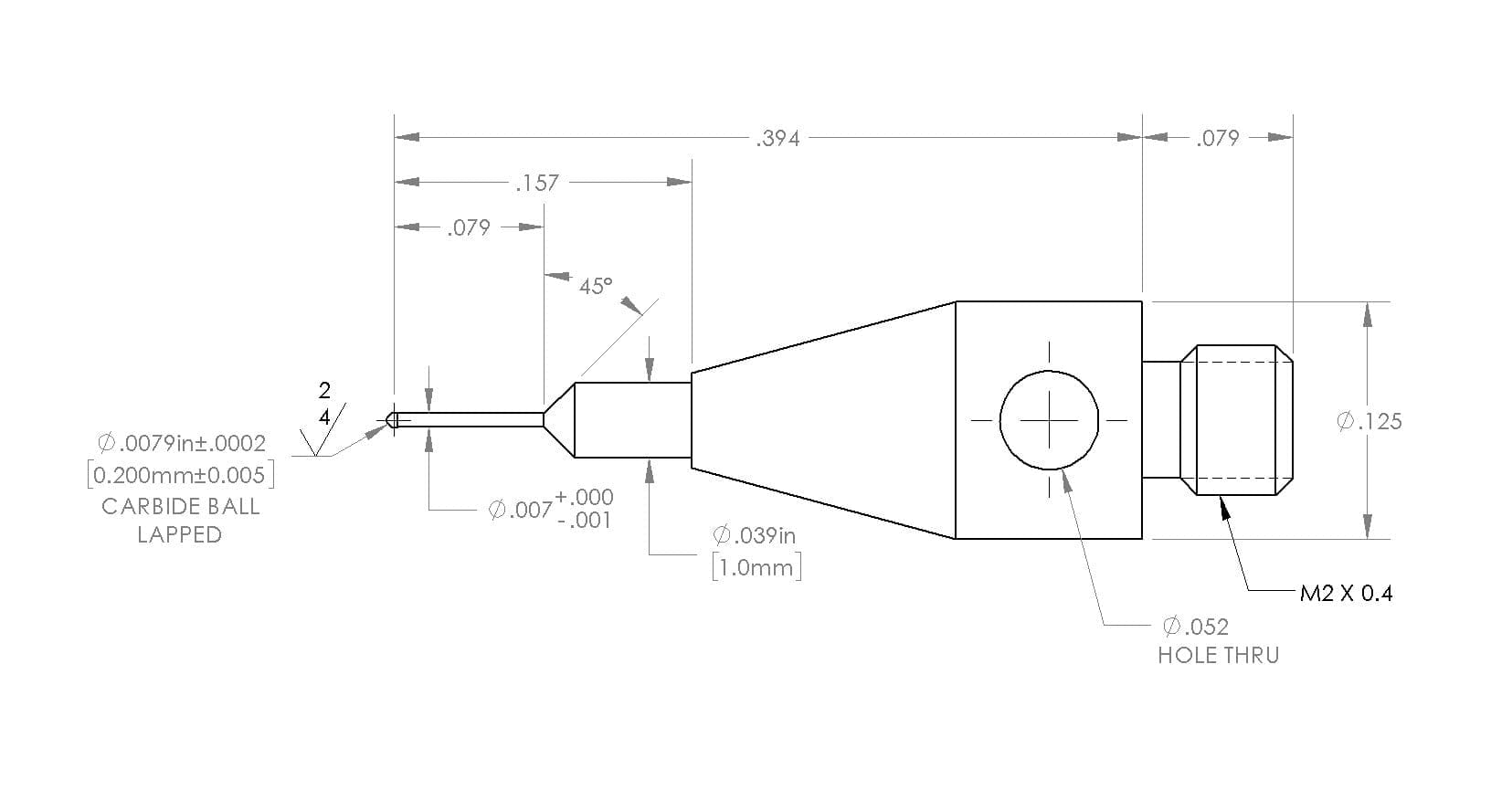

M2 Thds, 10.0mm Range Length, Ø.2mm Carbide Ball on Ø.18mm Carbide Stem X 2.0mm E.W.L.
Part No. 265-.2
Click to Enlarge
Part No. 265-.2
$204.75

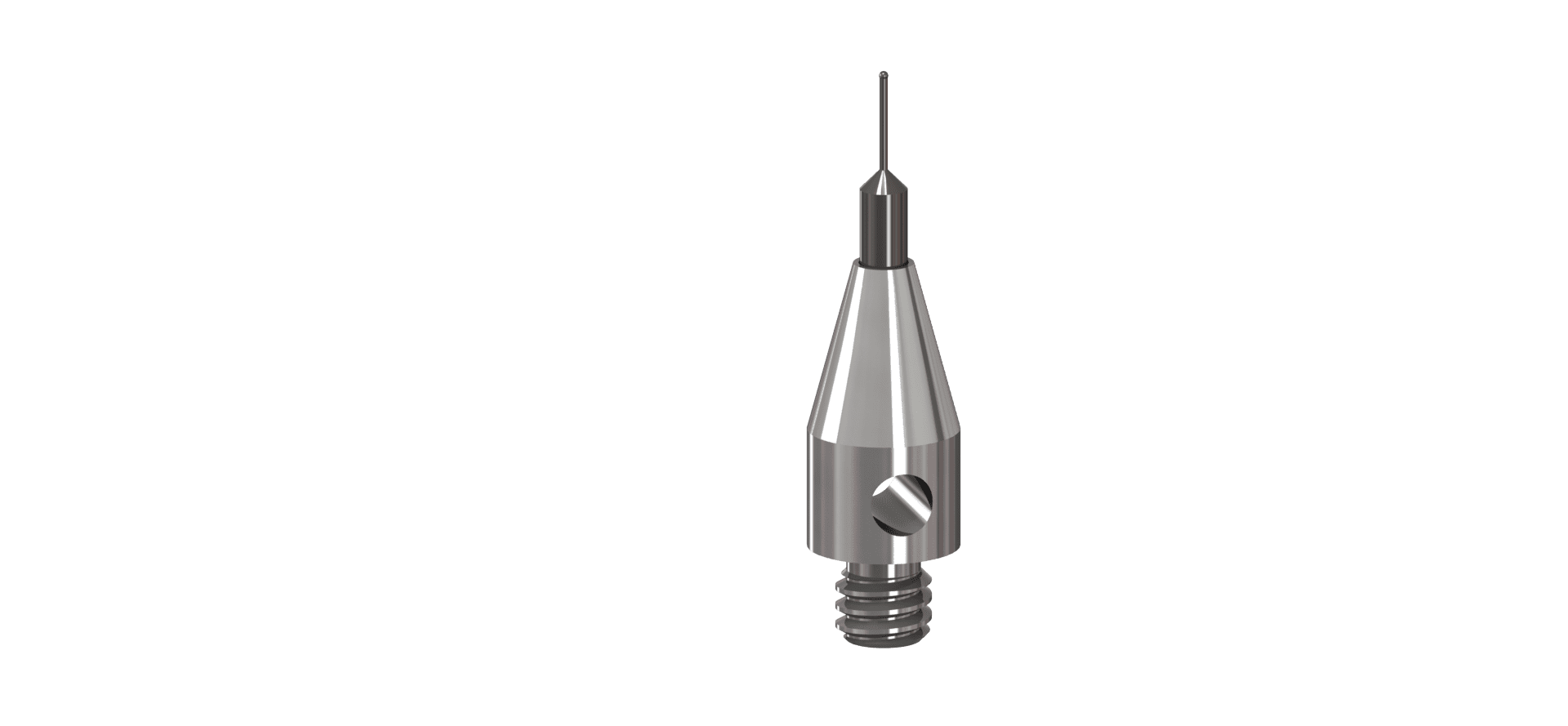

CMM Replacement Stylus
M2 Thds, 10.0mm Range Length, Ø.2mm Carbide Ball on Ø.18mm Carbide Stem X 2.0mm E.W.L.
| Qty | Percent |
|---|---|
| 10 | 5 |
| 24 | 10 |
| 50 | 15 |
| 100 | 20 |
Additional information
| Weight | 0.3 g |
|---|---|
| Length | 0.394in (10.00mm) |
| Ball Diameter | 0.0079in (0.200mm) |
| Tip / Ball Material | Carbide |
| EWL | 0.079in (2.00mm) |
| Stem Material | Carbide |
| Male Thread | M2X0.4 |
| Body Material | Stainless Steel |
| Stem Diameter | 0.007in (0.18mm) |
