Description
4-48 Thds, Carbide Tipped, Button Contact with .115″ Spherical Radius, Ø.187″ Dia X .150″ Long
Part No. 312
Click to Enlarge
Part No. 312
$24.25

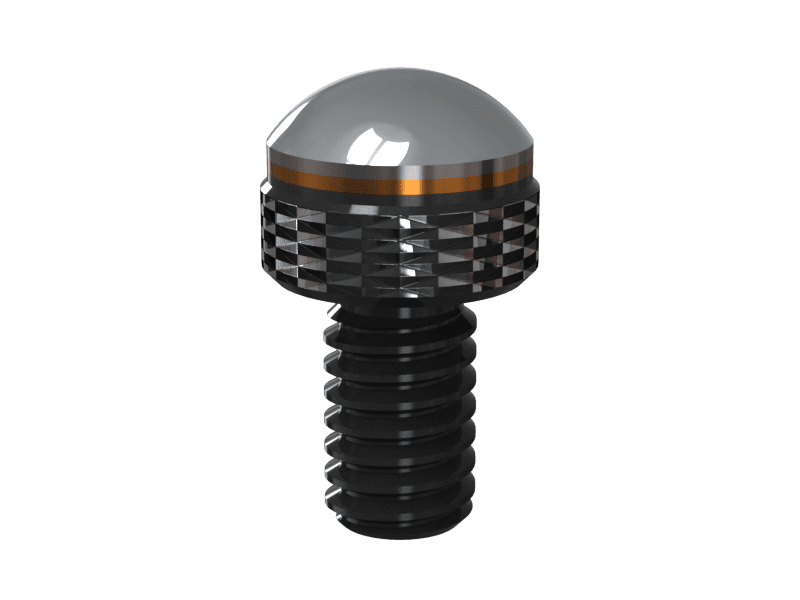

AGD Indicator Contact Point

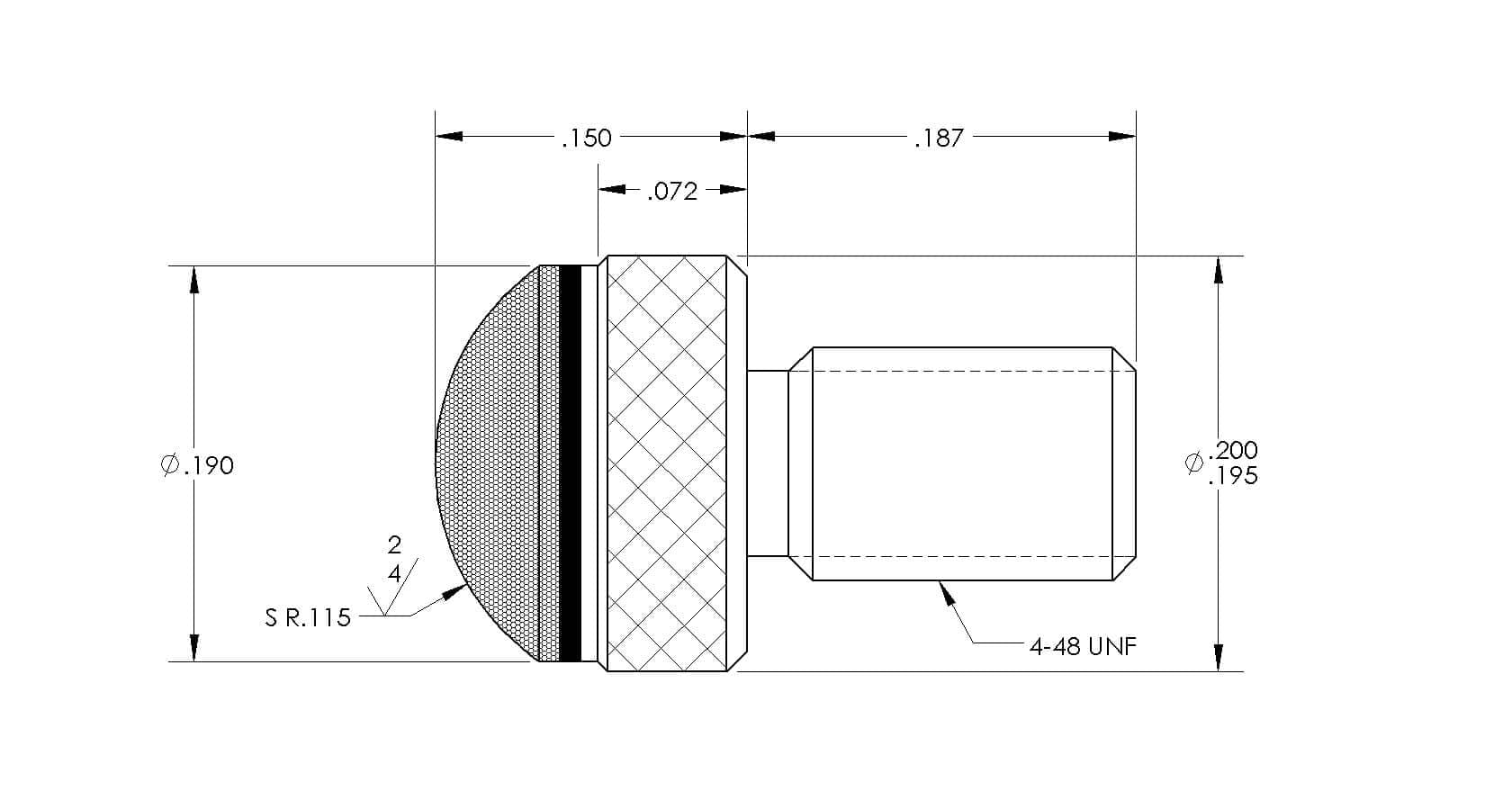

4-48 Thds, Carbide Tipped, Button Contact with .115" Spherical Radius, Ø.187" Dia X .150" Long
| Qty | Percent |
|---|---|
| 10 | 5 |
| 24 | 10 |
| 50 | 15 |
| 100 | 20 |
Additional information
| Weight | 1 g |
|---|---|
| Length | 0.150in (3.81mm) |
| Tip / Ball Material | Carbide |
| Radius | 0.115in (2.92mm) |
| Diameter | 0.187in (4.75mm) |
| Male Thread | 4-48 |
| Body Material | Tool Steel |
