Description

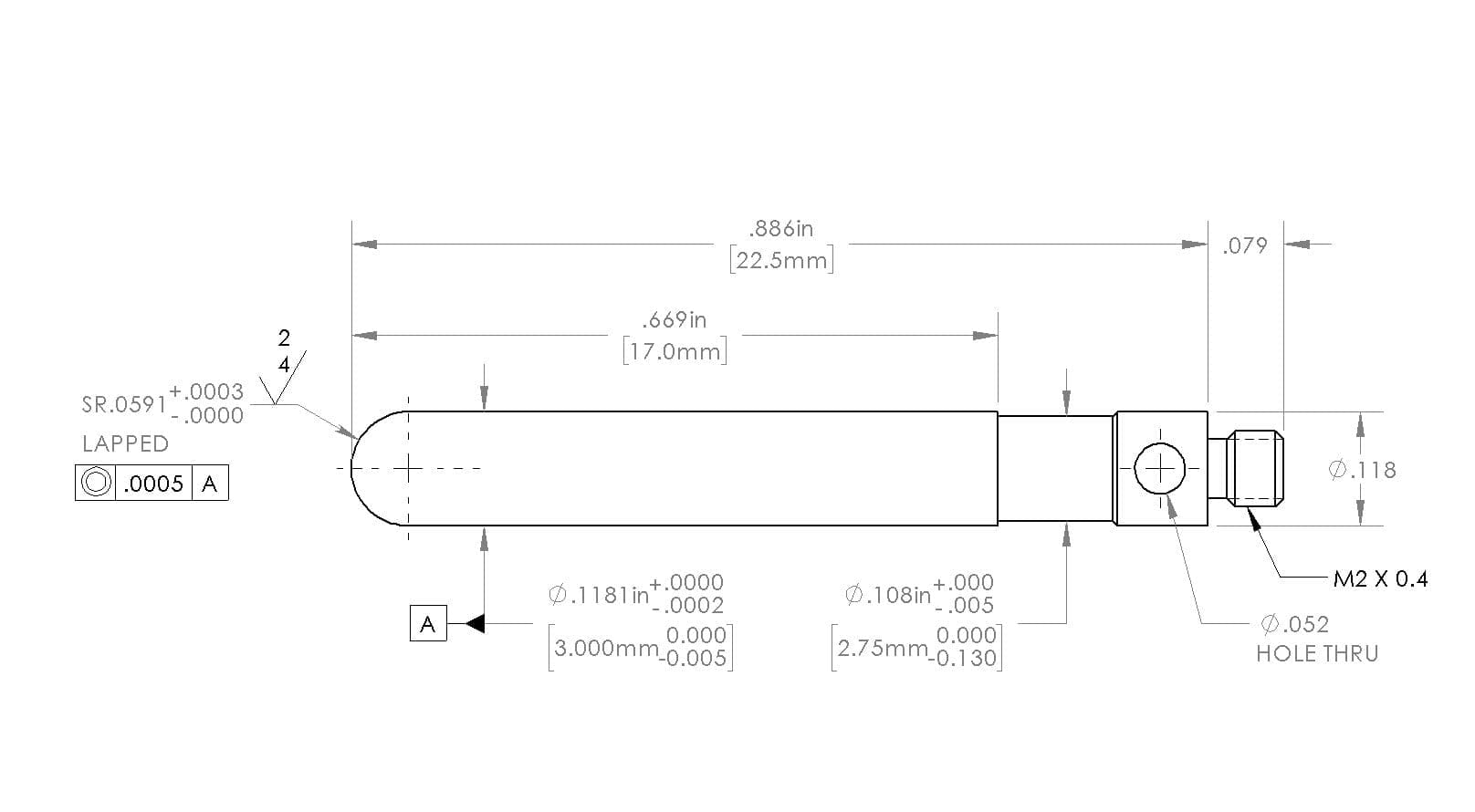

M2 Thds, 22.5mm Range Length, Parallel Hemispherical Tipped Carbide Cylinder Stylus; Ø3.0mm Cylinder Diameter X 17.0mm Long
Part No. 720
Click to Enlarge
Part No. 720
$76.50

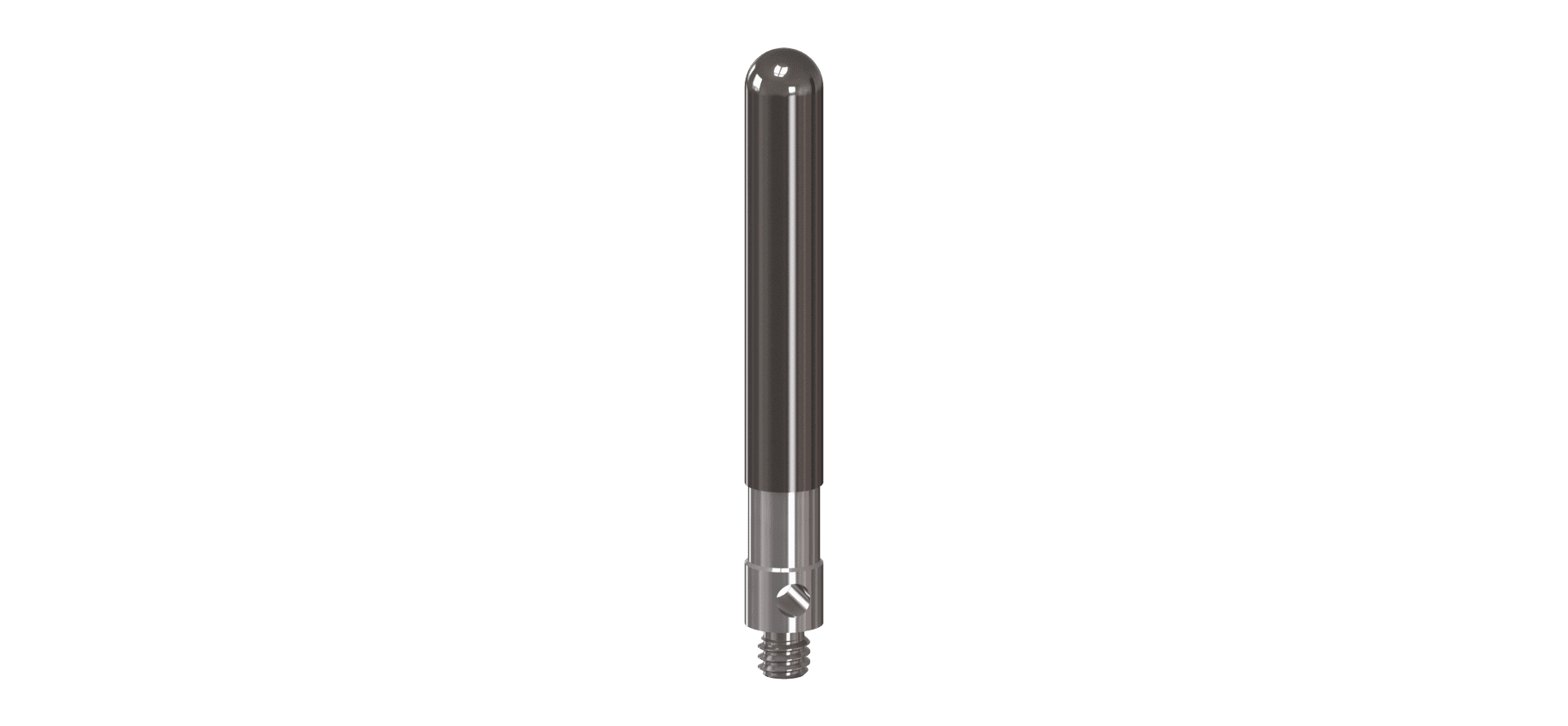

CMM Replacement Cylinder Stylus
M2 Thds, 22.5mm Range Length, Parallel Hemispherical Tipped Carbide Cylinder Stylus; Ø3.0mm Cylinder Diameter X 17.0mm Long
| Qty | Percent |
|---|---|
| 10 | 5 |
| 24 | 10 |
| 50 | 15 |
| 100 | 20 |
Additional information
| Weight | 2 g |
|---|---|
| Length | 0.886in (22.50mm) |
| Tip / Ball Material | Carbide |
| EWL | 0.669in (17.00mm) |
| Stem Material | Carbide |
| Diameter | 0.118in (3.00mm) |
| Male Thread | M2X0.4 |
| Body Material | Stainless Steel |
| Stem Diameter | 0.118in (3.00mm) |
| OEM Manufacturer | Renishaw |
| OEM Part Number | A-5003-1258 |
