$53.25

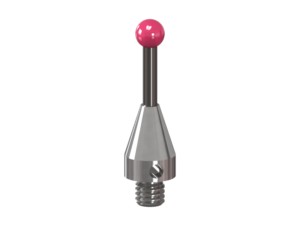

CMM Replacement Stylus
M4 Thds, 20.0mm Range Length, Ø2.0mm Carbide Ball on Ø1.5mm Carbide Stem X 10.0mm E.W.L. [Stylus is Electrically Conductive - Resistance is less than 0.1 Ohms - Compatible for use in Job Contact or Electrical Discharge Machining EDM Touch Probe Applications]
| Qty | Percent |
|---|---|
| 10 | 5 |
| 24 | 10 |
| 50 | 15 |
| 100 | 20 |
M4 Thds, 20.0mm Range Length, Ø2.0mm Carbide Ball on Ø1.5mm Carbide Stem X 10.0mm E.W.L.
[Stylus is Electrically Conductive – Resistance is less than 0.1 Ohms – Compatible for use in Job Contact or Electrical Discharge Machining EDM Touch Probe Applications]
| Weight | 2.3 g |
|---|---|
| Length | 0.787in (20.00mm) |
| Ball Diameter | 0.0787in (2.000mm) |
| Tip / Ball Material | Carbide |
| EWL | 0.394in (10.00mm) |
| Stem Material | Carbide |
| Male Thread | M4X0.7 |
| Body Material | Stainless Steel |
| Stem Diameter | 0.059in (1.50mm) |
