Part No. 840-3L

Part No. 840-3L

$53.25

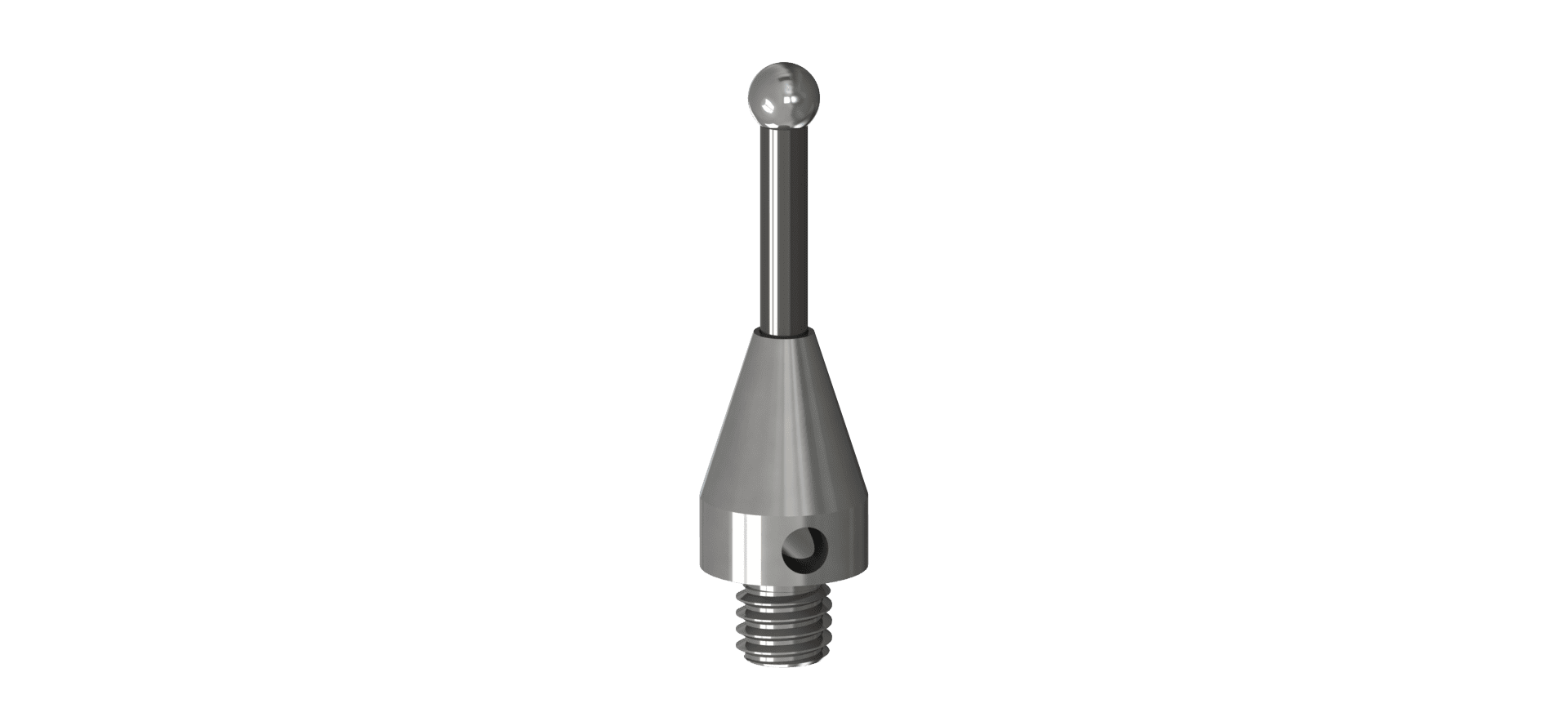

CMM Replacement Stylus

M4 Thds, 20.0mm Range Length, Ø3.0mm Carbide Ball on Ø2.0mm Carbide Stem X 10.0mm E.W.L. [Stylus is Electrically Conductive - Resistance is less than 0.1 Ohms - Compatible for use in Job Contact or Electrical Discharge Machining EDM Touch Probe Applications]

Categories: ,
Bulk discounts are:
QtyPercent
105
2410
5015
10020

Description

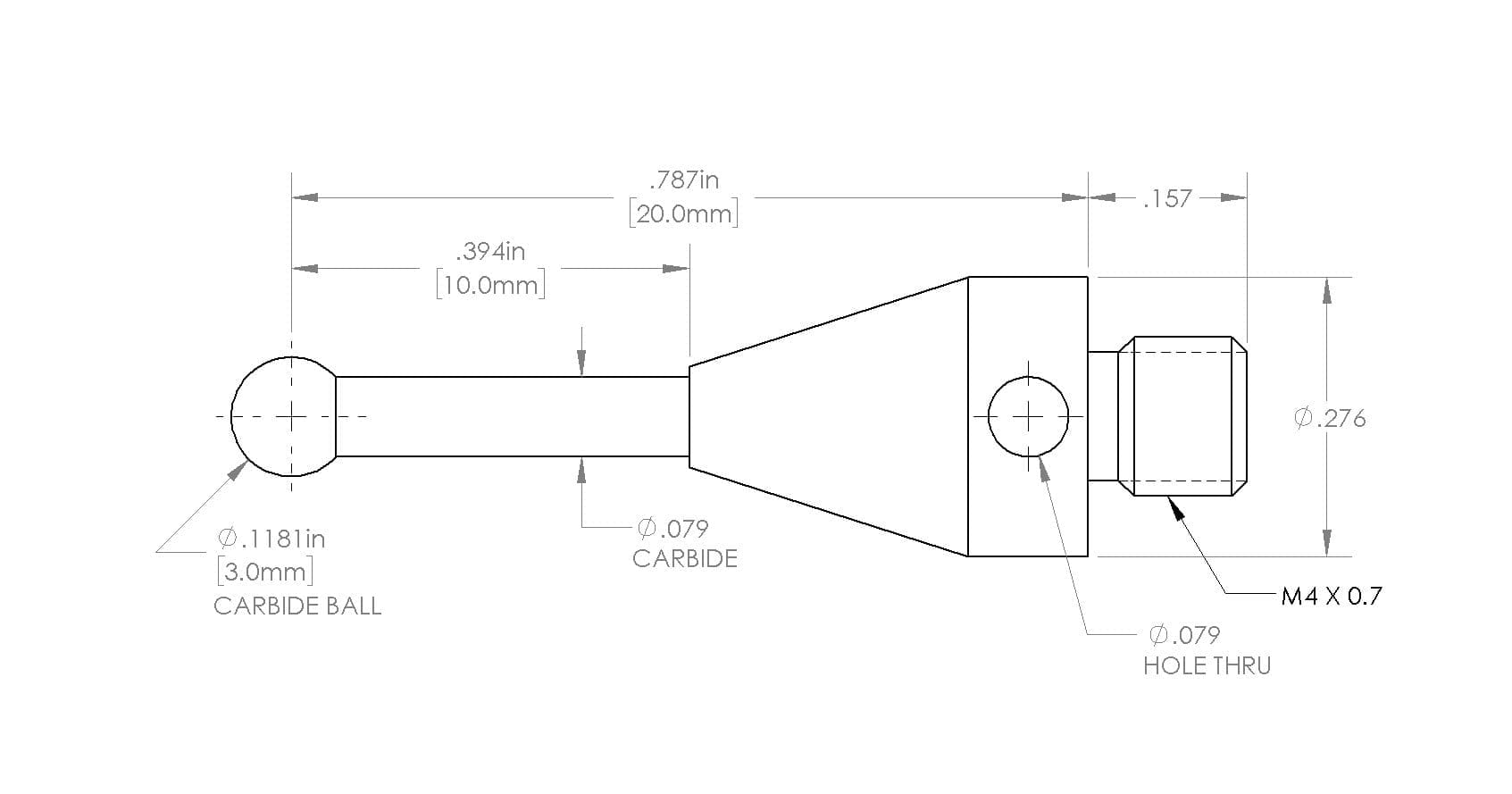

M4 Thds, 20.0mm Range Length, Ø3.0mm Carbide Ball on Ø2.0mm Carbide Stem X 10.0mm E.W.L.
[Stylus is Electrically Conductive – Resistance is less than 0.1 Ohms – Compatible for use in Job Contact or Electrical Discharge Machining EDM Touch Probe Applications]

Additional information

Weight 2.7 g
Length

0.787in (20.00mm)

Ball Diameter

0.1181in (3.000mm)

Tip / Ball Material Carbide
EWL

0.394in (10.00mm)

Stem Material Carbide
Male Thread M4X0.7
Body Material Stainless Steel
