Description

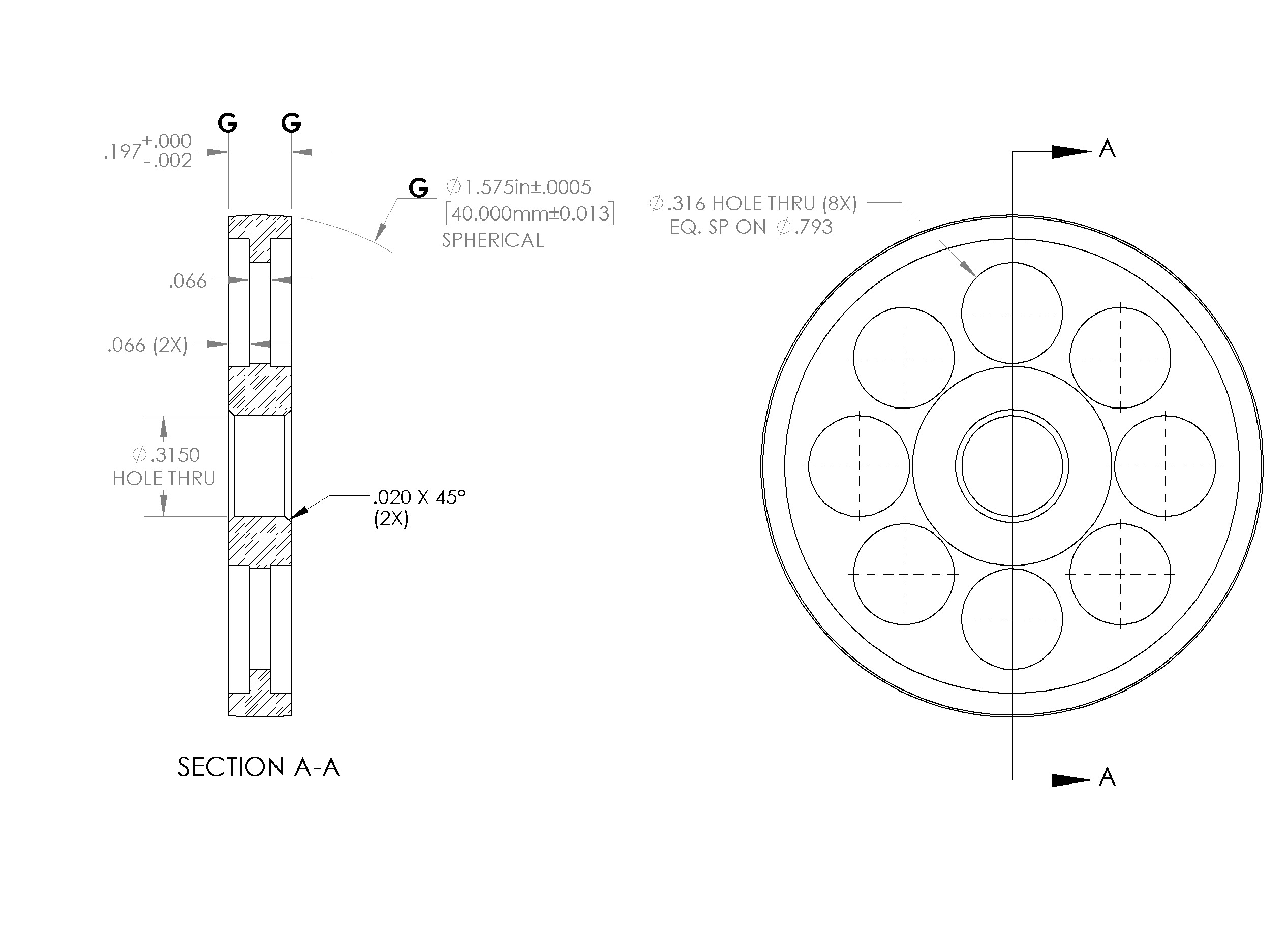

Hardened Steel Disk, Ø40.0mm Spherical Dia. X 5.0mm Disk Depth, Ø8.0mm Dia. Mounting Thru Hole
Part No. CPZ341-0204
Click to Enlarge
Part No. CPZ341-0204
$107.25
CMM Replacement Disc Stylus
Hardened Steel Disk, Ø40.0mm Spherical Dia. X 5.0mm Disk Depth, Ø8.0mm Dia. Mounting Thru Hole
| Qty | Percent |
|---|---|
| 10 | 5 |
| 24 | 10 |
| 50 | 15 |
| 100 | 20 |
Additional information
| Weight | 18.8 g |
|---|---|
| Length | 0.197in (5.00mm) |
| Tip / Ball Material | Hardened Steel |
| Diameter | 1.575in (40.00mm) |
| Male Thread | M5X0.8 |
| Body Material | Tool Steel |
| Stem Diameter | THRU HOLE (THRU HOLE) |
| OEM Manufacturer | Zeiss |
| OEM Part Number | 600341-0204-000 |
